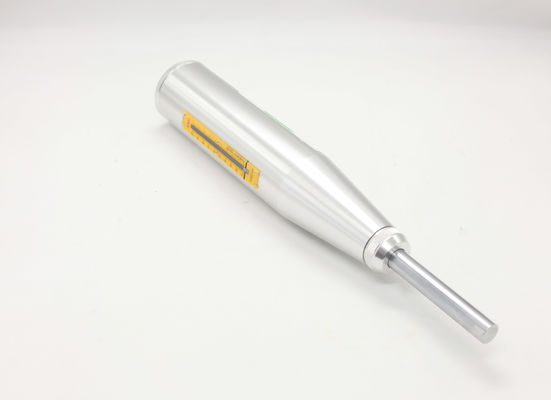

ISO9001 Schmidt Hammer HT-225A For Civil Engineering, Construction, CE Ceritification

Place of Origin Beijing
Brand Name SADT
Certification CE ISO9001
Model Number HT-225A
Minimum Order Quantity 1pc
Price USD+60-150+Pcs
Packaging Details Standard package
Delivery Time Within 3 days after receiving payment
Payment Terms T/T in advance, Western Union
Supply Ability 50pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Key Words Schmidt Hammer Testing Range 10-70N/mm2
Power Mechanical Usage Concrete Testing Machine
Dimension (mm) φ60x280 Impact Energy 2.207Nm
Certificate ISO9001/CE/SGS Application For Testing Ordinary Building And Bridge Construction
High Light

oled display schmidt rebound hammer

,

bluetooth schmidt rebound hammer

,

schmidt rebound hammer bluetooth

Leave a Message
Product Description

ISO Schmidt Hammer HT-225A with  for Civil Engineering, Construction

Introduction:


When testing the strength of concrete, the concrete test hammer uses a certain elastic force to transit

the impact force of an impact hammer to the surface of concrete, its initial kinetic energy redistributes,

a part of energy in the form of plastic deformation or residual deformation is adsorbed by the concrete,

and another part of energy which is proportional to the surface hardness is transmitted to the impact

hammer, making the hammer resile to a certain height, then the strength of the concrete is derived from

the proportional relation between the height of resilience and the concrete strength. With the merits of simple

structure, easy correction, maintenance and repair, and portability, the concrete test hammer is widely used

in civil engineering and construction industry for testing the strength of concrete. Compared to other nodestructive

testers, the concrete test hammer is an economical and practical nondestructive testing instrument. HT-225A is

used for testing the strength of various concrete members (slab, beam, column, truss) of normal building strength

and bridge.


Nominal kinetic energy:   2.207J(0.225kgf.m)
Flip tension spring rigidity:   7.84N (0.80kgf)/cm
Punch advance for impact hammer:  75mm
Impact surface hardness value between impact hammer and rod:   HRC59-63
Maximum breakout friction of pointer system:  0.49-0.78N(50-80g)
Mean-value of steel-anvil rating of concrete test hammer:  80+/-2
Standards: ISO/DIS 8045, EN 12504-2, ENV 206, DIN 1048 part 2, ASTM C 805,   ASTM D 5873, NFP 18-417,

                     B 15-225, JGJ/T 23-2001, JJG 817-1993


Dimension: 60x280mm
Net weight: 1kg
