PC Software Gloss Meter Portable Three-angle with Large Memory

  • PC Software Gloss Meter Portable Three-angle with Large Memory
  • PC Software Gloss Meter Portable Three-angle with Large Memory
  • PC Software Gloss Meter Portable Three-angle with Large Memory
  • PC Software Gloss Meter Portable Three-angle with Large Memory
  • PC Software Gloss Meter Portable Three-angle with Large Memory
  • PC Software Gloss Meter Portable Three-angle with Large Memory
Place of Origin Beijing
Brand Name SADT
Certification ＣＥ　ＩＳＯ９００１
Model Number GM60
Minimum Order Quantity 1pc
Price USD300-600/Pcs
Packaging Details Standard package
Delivery Time Within 3 days after receiving payment
Payment Terms T/T in advance
Supply Ability 50pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Painting, Printing, Floor Material, Plastic, Ceramics, Leather, Hardware, Plating Measuring Range(Gu) 0~120, 120~1000 @ 60°
Aperture 60° Measurement Spot (mm) 9×15
Dimension (mm) 164×58×88 Net Weight(g) 520
Warranty 1 Year Ceritificate ISO9001/SGS/CE
High Light

sheen gloss meter

,

elcometer gloss meter
Leave a Message
Product Description

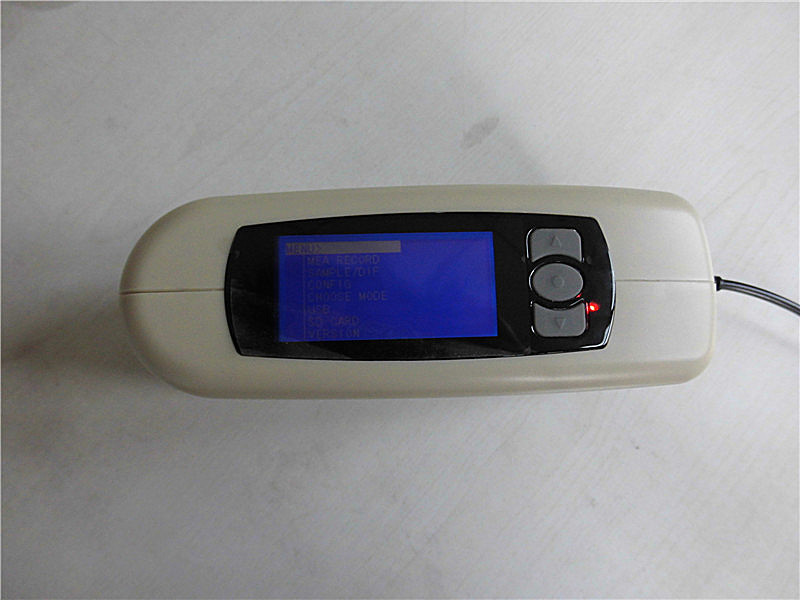

PC Software Gloss Meter Portable Three-angle with Large Memory





GM Series gloss meters are designed and manufactured according to internation standards ISO2813, ISO7668, ASTM D523, ASTM D2457 and China standards GB/T9754, GB/T13891, GB/T7706 and GB/ T8807. The technical parameters is up to JJG696-2002. GM Series gloss meters can be widely used to measure painting, coating, plastic, ceramics, leather products, paper, printing, floor materials and so on.





KEY FEATURES

  • Precision appearance design, more suitable for human characteristic, easy to use.
  • Large memory for measurement data.
  • Latest Bluetooth function and removable memory card to transmit data conveniently.
  • Speical designed gloss software to analysis data and output.
  • Prompt for low battery and full memory.



With internal Bluetooth module (only avalaible for GMS) or USB interface, GM gloss meter can transfer data with PC easily. The measuring data also can be exported to printer via printing interface. Optional SD card makes the memory as large as you want.



Specifications:



Model GM60
Application Painting, printing, floor material, plastic, ceramics, leather, hardware, plating
Measuring Range(Gu) 0~120, 120~1000 @ 60°
Readout Error(Gu) ±1.5 (0~120)
±1.5%(120~1000)
Repeatability ±0.5 (0~120)
±0.5%(120~1000)
Aperture (mm) 60°
Measurement Spot (mm) 9x15
Memory 900 data or 30 groups, CF card (optional)
Interface USB / printer /Bluetooth (Bluetooth is only avalaible for GMS)
Software Data managing software
Power Supply +5V, AA*4
Working Environment 10~40°C, <85%RH,
Dimension (mm) 164×58×88
Net Weight(g) 520
Standards ISO2813, ISO7668, ASTMD 523, ASTM D2457, GB/T9754, GB/T13891, GB/T7706, GB/T8807
