Coupling Indication SA40 digital Ultrasonic Thickness Gauge 500m/sec - 9999m/sec Velocity Range

Place of Origin Beijing
Brand Name SADT
Certification CE ISO9001
Model Number SA40
Minimum Order Quantity 1pc
Price USD200-500 /Pcs
Packaging Details Standard package
Delivery Time Within 3 days after receiving payment
Payment Terms T/T in advance, Western Union
Supply Ability 50pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Accuracy 0.01mm Measuring Range 0.75-300mm
Memory 400 Key Words Ultrasonic Thickness Gauge
Standard Probe PT-5 Power Supply AA Battery X 2
Memory 400 Data Working Environment 0~40oC, 20~90%RH
High Light

steel thickness gauge


ultrasonic thickness gauge

Leave a Message
Product Description

Coupling Indication SA40 digital Ultrasonic Thickness Ggauge 500m/sec - 9999m/sec Velocity Range

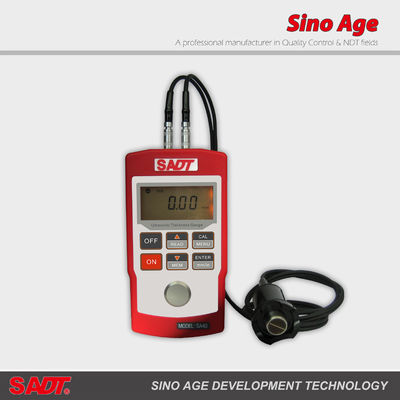

SA40 is the miniaturized ultrasonic thickness gauge that can measure wall thickness and velocity. Our intelligent gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, brass, silver, oil, acrylic resin, glycerin, water glass and etc. It is quite versatile model which can be easily equipped with the low & high frequency probes as well as a high temperature probe.



Technique: pulse echo with dual probe
Display: 4 digits LCD with backlight
Measuring range: 0.75 to 300.0mm
Resolution : 0.01mm@0.8-99.99mm, 0.1mm@100.0-225.0mm
Velocity range: 500-9999m/sec.
Display circle: 1 sec.
Coupling indication
Memory: 400 data can be stored and re-readable
Units: mm or inch
Low battery indicator on LCD
Auto shut-off: after 5 min. of non-use
Power: 2 ea. 1.5V AA alkaline cells
Operating temperature: 0-40°C
Operating humidity: 20-90%RH
Weight: 240g

PT-5        5MHZ         Dia.Φ10mm       For standard applications
XT-5        5MHZ         Dia.Φ7mm        For tubes with small diameter
GT-5        5MHZ         Dia.Φ12mm       For high temperature up to 400℃
