SA10 Miniaturized Ultrasonic Thickness Gauge from 1.2225mm with 5P probe at factory price

  • SA10 Miniaturized Ultrasonic Thickness Gauge from 1.2225mm with 5P probe at factory price
  • SA10 Miniaturized Ultrasonic Thickness Gauge from 1.2225mm with 5P probe at factory price
  • SA10 Miniaturized Ultrasonic Thickness Gauge from 1.2225mm with 5P probe at factory price
Place of Origin Beijing
Brand Name SADT
Certification ＣＥ　ＩＳＯ９００１
Model Number SA10
Minimum Order Quantity 1pc
Price USD100-300/Pcs
Packaging Details Standard package
Delivery Time Within 3 days after receipt of advanced payment
Payment Terms T/T in advance, Western Union, paypal
Supply Ability 50pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Accuracy 0.1mm Testing Range 1.2-225mm
Key Words Ultrasonic Thickness Gauge Warranty 1 Year
Dimension (mm) 127x66x29 Net Weight (g) 240
Standard Probe 5p
Highlight

steel thickness gauge

,

ultrasonic thickness gauge
Leave a Message
Product Description

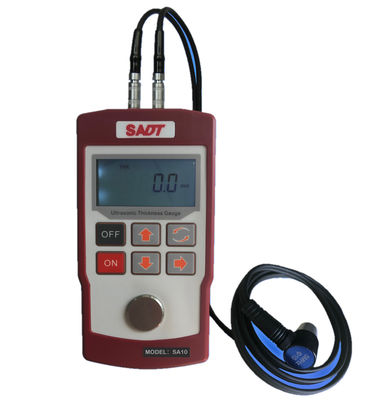

SA10 Miniaturized Ultrasonic Thickness Gauge 1.2mm- 225mm Pulse Echo with Dual Probe



 SA10 is the miniaturized ultrasonic thickness gauge that can measure wall thickness and velocity. Our

intelligent gauge is designed to measure the thickness of metallic and non-metallic materials such as steel,

aluminum, brass, silver, oil, acrylic resin, glycerin, water glass and etc.
Specifications:
Technique: pulse echo with dual probe
Display: 4 digits LCD with backlight
Measuring range: 1.2 to 225mm
Resolution : 0.1mm
Velocity range: 500-9999m/sec.
Display circle: 1 sec.
Coupling indication
Units: mm
Low battery indicator on LCD
Auto shut-off: after 5 min. of non-use
Power: 2 ea. 1.5V AA alkaline cells
Operating temperature: 0-40°C
Operating humidity: 20-90%RH
Size: 124x67x30mm
Weight: 240g
