Battery powered Surface Roughness Tester Micro Processed For Checking Surface Roughness

  • Battery powered Surface Roughness Tester Micro Processed For Checking Surface Roughness
  • Battery powered Surface Roughness Tester Micro Processed For Checking Surface Roughness
  • Battery powered Surface Roughness Tester Micro Processed For Checking Surface Roughness
  • Battery powered Surface Roughness Tester Micro Processed For Checking Surface Roughness
Place of Origin Beijing
Brand Name SADT
Certification ISO9001
Model Number Roughscan
Minimum Order Quantity 1pc
Price USD900-1700/Pcs
Packaging Details Standard package
Delivery Time Within one week after recept of advanced payment
Payment Terms T/T in advance
Supply Ability 50pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Maximum Stylus Force 15.0mN/1500mgf Sensor Type Piezoelectric
Display 3-digit LCD Cut-off 0.8mm/0.30”, ANSI 2RC Filter
Resolution 0.01μm/1μ” Warranty 1 Year
Storage Temperature 0~60 Degree Maximum Sty L U S Force 15.0mN/1500mgf
Highlight

portable roughness tester

,

surface roughness measurement
Leave a Message
Product Description

Batterypowered Surface Roughness Tester Micro Processed For Checking Surface Roughness

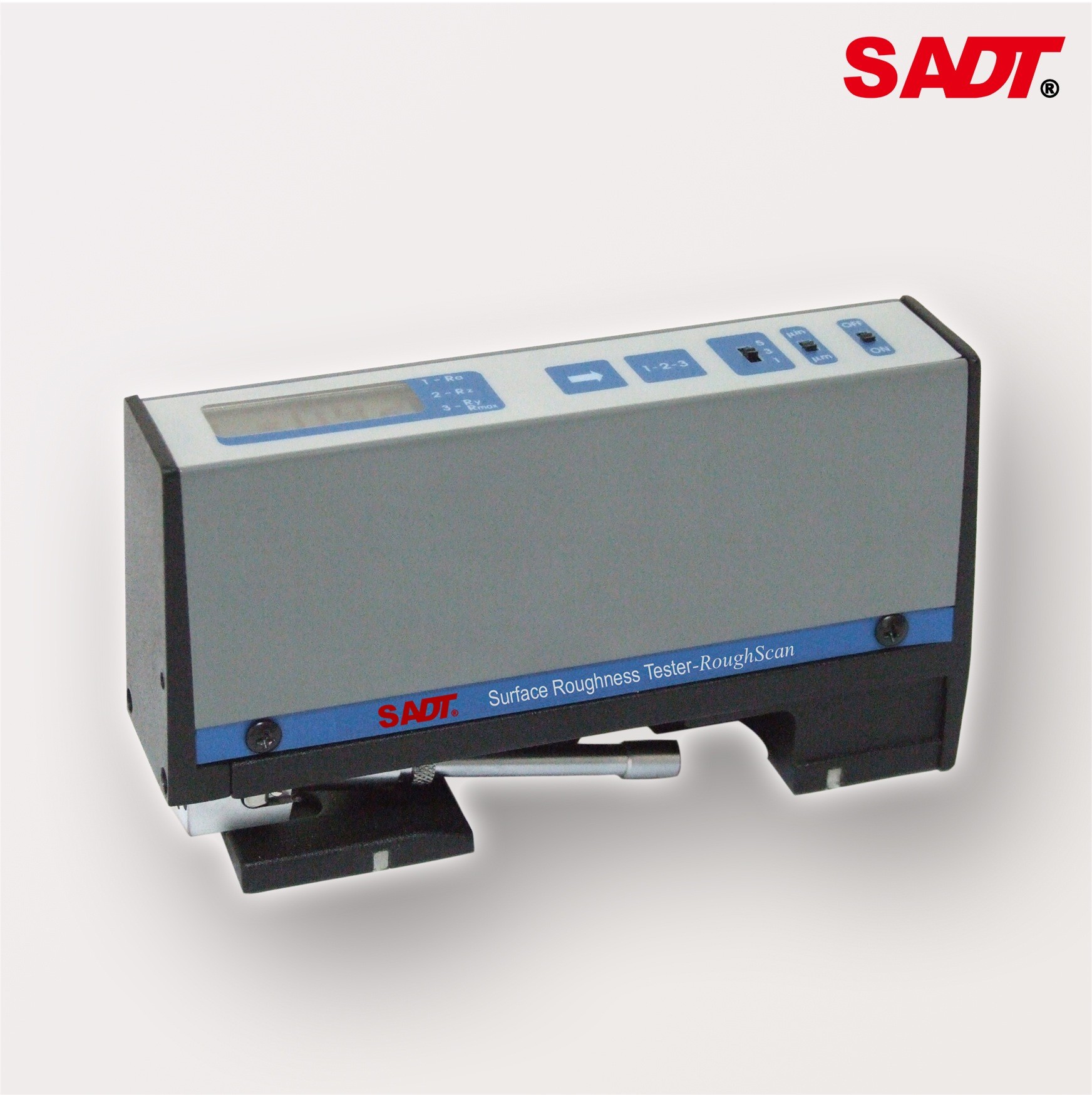

RoughScan is a portable, batterypowered, micro processed instrument for checking surface roughness with digital readout on LCD. RoughScan can be widely used in laboratory, inspection area in the shop, or wherever on-site surface roughness testing is required.

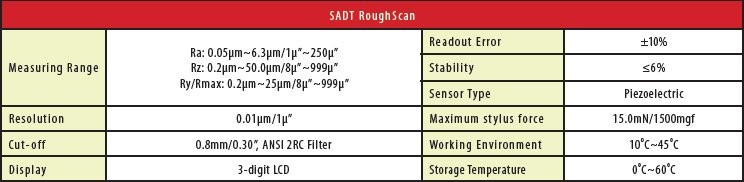

Specifications:



 Model  SADT RoughScan
 Measuring Range  Ra: 0.03μm~6.3μm/1μ”~250μ”
Rz/Ry/Rmax: 0.2μm~25μm/8μ”~999μ”
 Resolution  0.01μm/1μ”
 Cut-off  0.8mm/0.30”, ANSI 2RC Filter
 Display  3-digit LCD
 Readout Error  ±10%
 Stability  ≤6%
 Sensor Type  Piezoelectric
 Maximum stylus force  15.0mN/1500mgf
 Working Environment  10°C~45°C
  Storage Temperature  0°C~60°C





Traverse lengths and Evaluation lengths:



 Traverse length  Evaluation length  Numbers of cutoff
 0.5mm  0.25mm   1
 1.2mm  0.8mm   1
 5.5mm  5.0mm   1
 1.25mm  0.75mm   3
 3.0mm  2.4mm   3
 5.5mm  5.0mm   3
 1.75mm  1.25mm   5
 4.5mm  4.0mm   5
 5.5mm  5.0mm   5

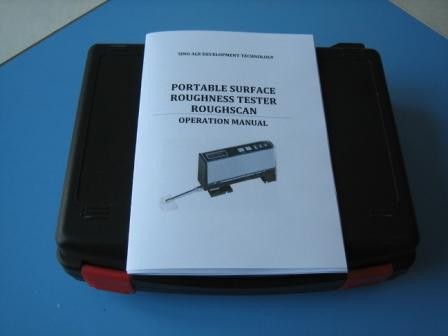

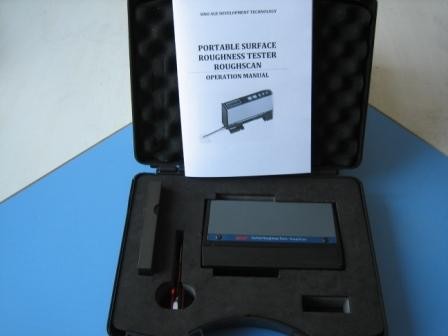

A ROUGHSCAN standard kit is furnished in a fitted case, and includes:
 A ROUGHSCAN unit with a general purpose probe (SFP-2001)
 A precision reference specimen
 A 9-volt alkaline battery
 A riser plate for calibrating the gage with the reference specimen
 A screw driver




_01_02





Battery powered Surface Roughness Tester Micro Processed For Checking Surface Roughness 2

_04_05_06_07_08
