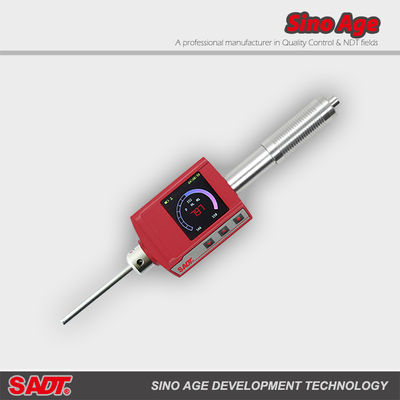

New Leeb hardness tester HARTIP4100 with durable metal housing , D&DL 2-in-1 probe optional

New Leeb hardness tester HARTIP4100 with durable metal housing , D&DL 2-in-1 probe optional

New Leeb hardness tester HARTIP4100 with durable metal housing , D&DL 2-in-1 probe optional
New Leeb hardness tester HARTIP4100 with durable metal housing , D&DL 2-in-1 probe optional

Large Image :  New Leeb hardness tester HARTIP4100 with durable metal housing , D&DL 2-in-1 probe optional

Product Details:

Place of Origin: Made in China
Brand Name: SADT
Certification: ISO9001, CE, SGS
Model Number: HARTIP4100

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD500-1000/Pcs
Packaging Details: rigid carrying case
Delivery Time: 3 days upon advanced payment
Payment Terms: T/T, Western Union
Supply Ability: 5000 pcs /year
Detailed Product Description
Material: Metal Memory: 30/60 Files On Request , 100 Data For Each File , Can Be Saved And Re-readable
Display: High Contrast Color TFT 320*320 Language: 10 Type Different Language
Accuracy: +/-2 HLD Probe: D, DL , D/DL Two In One Probe,
Warranty: 1 Year Certification: CE/ISO9001/SGS
High Light:

metal hardness tester

,

integrated hardness tester

New Leeb hardness tester HARTIP4100 with durable metal housing , D&DL 2-in-1 probe optional



HARTIP4100 is an advanced state-of-the-art palm sized metal hardness tester with many new features.



It still used our patent technology which makes it to have extraordinary accuracy:+/-2HL with high contrast colour TFT display and durable metal housing.



It has a moving bar-graph display which can evaluate the workpiece upon deviation value by different colort for easy visual distinguish.



It can download measuring data to PC and printout to mecro-printer by USB port and wirelessly with internal wireless module.



The battery can be charged simply from USB port , also it has a customer re-calibration and statistics function.





Advantages:



* Integrated design , easy operation

* Durable metal housing

* TFT320*320 colour display

* Wide operation environment : -20ºC-70ºC

* High accuracy:+/-2HL (or 0.3% @HL800)

* Auto compensate error for different impact direction

* Moving bar-graph display

* Two evaluation modes: By limit / Deviation

* Two Calibration modes:Coincident / Independent

* Multi-printing mode

* Four display styles

* Sound reminder

* Up to 10 kinds of menu language

* D & DL two in one probe

* It can connect to computer by USB or Bluetooth

* USB and Bluetooth interface, it can connect micro-printer wirelessly

* 3.7 V Li-ion rechargeable battery, it can be charged by USB or power source

* Statistics value can be calculated automatically

* With strength conversion value

* Power on / off automatically or manually

* Packed in rigid carrying case



Specifications:

Model SADT HARTIP4100
Principle Leeb hardness measurement
Accuracy ±0.3% @ HL=800 / ±2HL
Display High contrast color TFT 320*320
Hardness scale HL / HRC / HRB / HB / HV / HS / HRA /σb
Measuring range HL100-960 / HRC0.9-79.2 / HRB1.2-140/ HB1-1878/ HV1-1698 / HS0.5-128/ HRA7-88.5 / σb(rm)24-6599N/mm2
Probe D/ D-DL 2-in-1 (internal)
Materials and curves 11 common metal materials, 75 curves
Memory 30/60 files on request , 100 data for each file , can be saved and re-readable
Statistics function Average /Max. /Min. /S.value
Re-calibration Coincident /Independent
Indicator Low battery
Language Chinese,English,Traditional Chinese, Russian, German,French, Italian, Turkish, Spanish,Korean
Interface USB/Bluetooth to PC for transfering data , wireless printing , USB for charging
Power on/off Auto/Manual
Power supply 3.7V Li-ion rechargeable battery
Working environment -20°c~+70°c
Dimension (mm) 148*44*22
Net weight (g) 115
Standards Conforming to ASTM A956, DIN 50156, GB/T 17394-1998
D-DL 2-in-1 probe is only available for DL models
