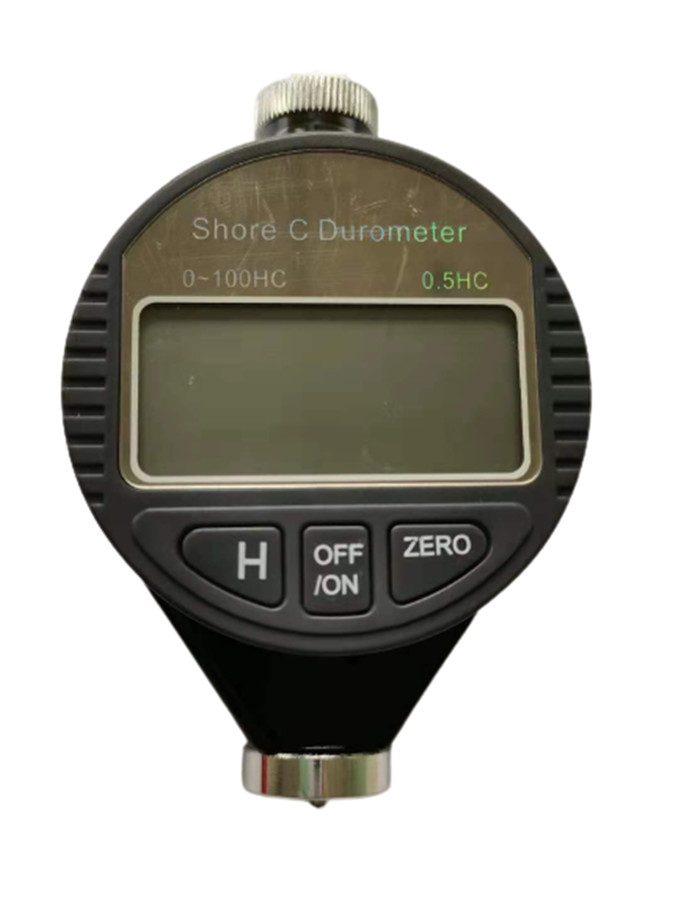

Simple Structure Shore C 0.5HA Digital Rubber Hardness Tester

Simple Structure Shore C 0.5HA Digital Rubber Hardness Tester
Simple Structure Shore C 0.5HA Digital Rubber Hardness Tester Simple Structure Shore C 0.5HA Digital Rubber Hardness Tester Simple Structure Shore C 0.5HA Digital Rubber Hardness Tester Simple Structure Shore C 0.5HA Digital Rubber Hardness Tester

Large Image :  Simple Structure Shore C 0.5HA Digital Rubber Hardness Tester

Product Details:
Place of Origin: China
Brand Name: SADT
Certification: ISO9001 SGS
Model Number: Shore A/C/D
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: USD20-50/Pcs
Packaging Details: Carrying case with carton
Delivery Time: 5-8 working days
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 500 pcs/month
Detailed Product Description
Model: Shore A/C/D Type: A
A Force: 8.1N Pressure: 1 Kg
Indenter Shape: Flat Cone Point (0.79 Mm) 35º Included Angle Length Of Probe: 2.5 Mm
Measuring Range: 0-100HA Resolution: 0.5HA
High Light:

digital rubber hardness tester simple structure

,

digital rubber hardness tester simple

,

0.5HA digital rubber hardness tester

Digital Rubber Hardness Tester Shore A/C/D



Shore digital rubber hardness tester is designed for testing the hardness of soft rubber, printer roller and other elastomer material.(ASTM-D--2240). It has advantages of simple structure, convenient use, small body and light weight, intuitive readings. It can carry the hand-held measurements and can also be installed on the same type of fixed cradle which is matched with the set load test.



A-type apply to normal rubber,soft rubber,polyeater , leather , wax an so on .

D-type apply to normal hard rubber, hard rubber , hard resin, acryl ,  glass , thermoliastic, printing plate, fiber and so on.

Measure up to standard Din53505, ASTM D2240 ISO/R868, JIS R7215.



Key feature



 Simple structure
 Very convenient to use
 Easy to carry
 ON/OFF Switch
 Holding measured display values
 Zero setting
 Power Supply: one 1.5 V cell batter y
 Used to test sof t rubber, prnter roller and other elastomer materials



Key  Parameter



Graduation : 0-100 degree

Indentor running : 0-2:5mm

Indentor press on telos : A , C type 0.55N-8.06N, D type0-44.5N



Specification



Model Shore A Shore C Shore D
Measuring range 0-100HA 0-100HC 0-100HD
Resolution 0.5HA 0.5HC 0.5HD
Accuracy ±1HA ±1HC ±1HD
Force 0.55-8.06N 0-44.5N
Applications general rubber, synthetic rubber, soft rubber, poly-resin, leather, wax, etc. rubber and contains the tiny hole material that that the vesicant is made in being used for plastic general hard rubber, hard resin, acryl, glass, thermoplastics, printing plates, fibres, etc.
Indenter shape Flat cone point 0.79mm 35º Included Angle Spherical SR2.5mm Sharp cone point SR 0.1mm 30º Included Angle
Tip stroke 2.5mm Net weight 0.5kg







_01_02

Simple Structure Shore C 0.5HA Digital Rubber Hardness Tester 2

_04_05_06_07_08
