|Accuracy:||±0.4% @ HL=800 / ±3HL||Language:||English|
|Principle:||Leeb Hardness Measurement||Dimension (mm):||100x60x33|
High Accuracy Hartip 1500 ASTM A956 Standard Hardness Tester Leeb Hardness Measurement

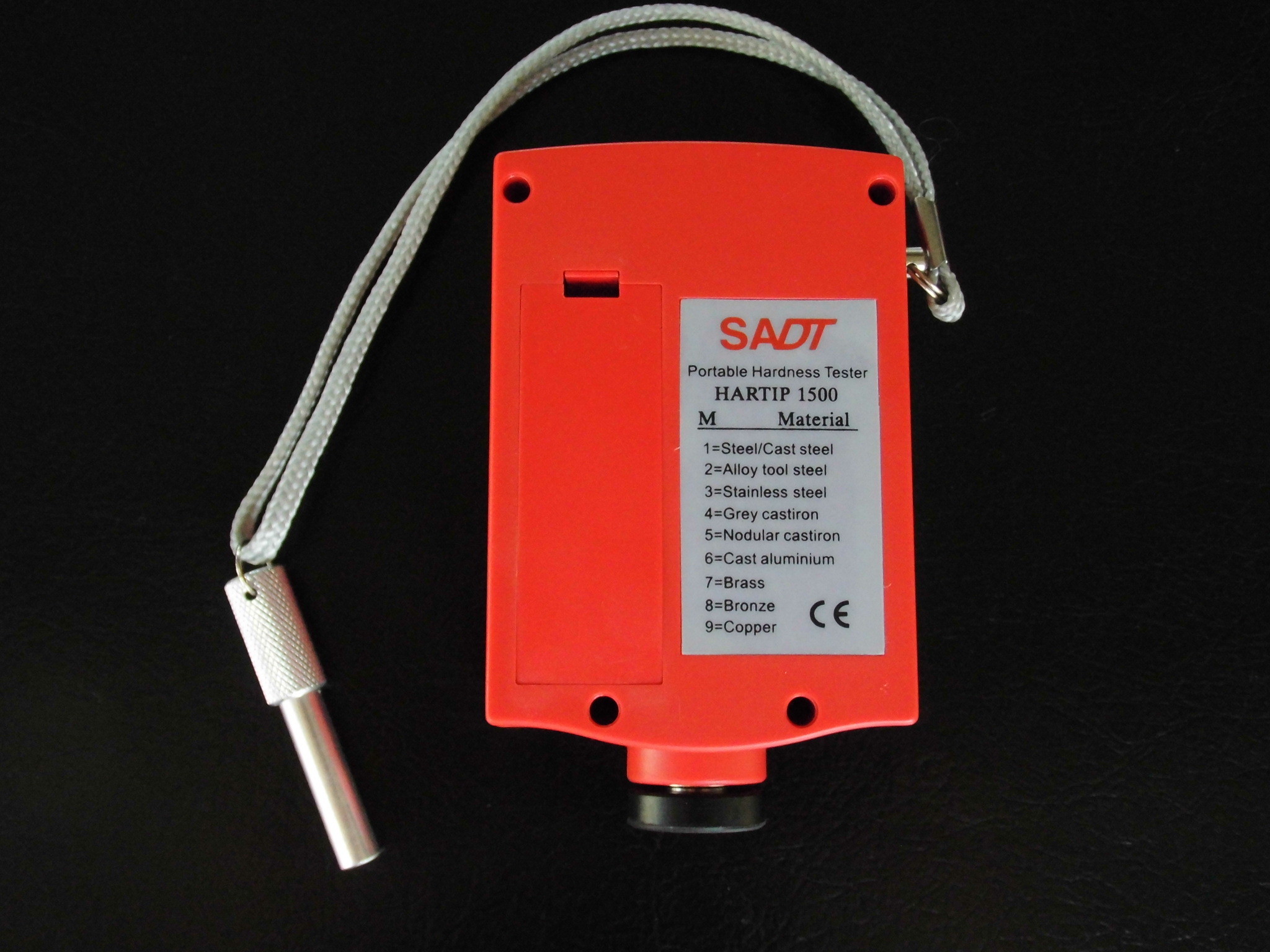

HARTIP 1500 is an integrated handheld metal hardness tester that combines impact device (probe) and
processor into one unit. The size is much shorter than normal impact device, which lets HARTIP 1500
can meet not only normal measurements, but can take measurements at narrowed space as well. HARTIP
1500 is suitable for testing hardness of almost all Ferrous and Non-Ferrous materials. It can be used for
industrial of power plant, petrochemical field, vehicle machine, air space, machine and so on.
·Rugged and modular design
·Palm sized for narrow space
·Built-in impact device
·For all metallicmaterials
·Wide measuring range: Rockwell B&C, Brinell, Vickers, Shore and HL
·Test in any directions
·Automatic power on/off
·Comply to standard ASTM A956
|Principle||Leeb hardness measurement|
|Accuracy||±0.4% @ HL=800 / ±3HL|
|Display||LCD with backlight|
|Measuring range||HL100-960 / HRC0.9-78.7 / HRB1.2-140
/ HB15-1878 / HV11-1698 / HS2-128
|Materials||9 common metal materials|
|Statistics function||Average / Max. / Min.|
|Re-calibration||Allowed by user|
|Auto power off||Auto|
|Power supply||9V alkaline battery x 1|
|Net weight (g)||160|
|Standards||Conforming to ASTM A956, DIN 50156, GB/T 17394-1998|
Sino Age Development Technology, Ltd. (SADT), established in 1993, is a leading manufacturer / supplier of measuring andtesting instrument, specialized in NDT and quality control fields.
We have our own HARTIP series portable hardness testerssince 1995.
Now our main products cover portable and bench type hardness tester, ultrasonic thickness gauge, digital concrete hammer, gloss meter, colorimeter, roughness tester, handheld metallurgical microscope, ultrasonic flaw detector and so on.
Our main overseas markets are: USA, Canada, Germany, France, Netherlands, Finland, Italy, Czech Republic, Poland, Lithuania, Estonia, Serbia, Greece, Turkey, Australia, New Zealand, Korea, Taiwan, Singapore, Thailand, Indonesia, Malaysia, Vietnam, India, Pakistan, Iran, UAE, Egypt, South Africa, Mexico and Columbia, Peru and etc.
We are professional producer with ISO 9001 quality system. Most of the products are applied with CE certificate.
