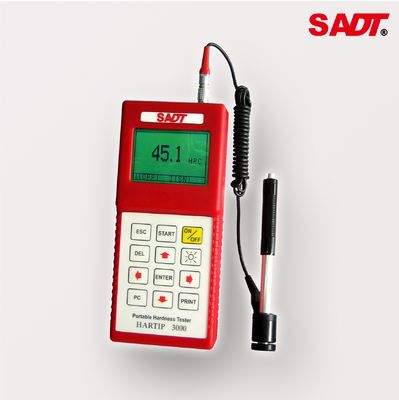

Universal Leeb Digital Portable Hardness Tester HARTIP3000 Lightweight With RS232 / USB Interface

China Universal Leeb Digital Portable Hardness Tester HARTIP3000  Lightweight With RS232 / USB Interface supplier
Universal Leeb Digital Portable Hardness Tester HARTIP3000  Lightweight With RS232 / USB Interface supplier Universal Leeb Digital Portable Hardness Tester HARTIP3000  Lightweight With RS232 / USB Interface supplier Universal Leeb Digital Portable Hardness Tester HARTIP3000  Lightweight With RS232 / USB Interface supplier Universal Leeb Digital Portable Hardness Tester HARTIP3000  Lightweight With RS232 / USB Interface supplier Universal Leeb Digital Portable Hardness Tester HARTIP3000  Lightweight With RS232 / USB Interface supplier Universal Leeb Digital Portable Hardness Tester HARTIP3000  Lightweight With RS232 / USB Interface supplier

Large Image :  Universal Leeb Digital Portable Hardness Tester HARTIP3000 Lightweight With RS232 / USB Interface

Product Details:

Place of Origin: Beijing
Brand Name: SADT
Certification: CE ISO9001
Model Number: Hartip 3000

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD400-800/Pcs
Packaging Details: Standard package
Delivery Time: Within 3 days after receiving payment
Payment Terms: T/T in advance, Western Union
Supply Ability: 50pcs/week
Contact Now
Detailed Product Description
Principle: Leeb Hardness Measurement Accuracy: ±0.5% @ HL=800 / ±4HL
Hardness Scale: HL/HRC/HRB/HB/HV/HS Materials 9: 9 Common Metal Materials
Memory: 960 Data In 8 Blocks, Can Be Saved And Rereadable Dimension (mm): 195x84x38
Net Weight (g): 550 Warranty: 1 Year

Universal Leeb Digital Portable Hardness Tester Lightweight With RS232 / USB Interface



HARTIP 3000 is an advanced hand-held digital metal hardness tester with characters of high accuracy,

wide measuring range and easy operation. It is suitable for testing the hardness of all metals especially

on site for large structure/assembled components. Which is widely used in the industry of power, petro

chemistry, air space, vehicle, machine and so on.



Details:



MEASURING METHOD



The measuring principle of HARTIP series hardness testers is defined as "the quotient of the impact body's

rebound and impact velocity, multiplied by 1000." An impact body with a Tungsten Carbide test tip is propelled

by spring force against the test surface and then rebounds back. A permanent magnet is contained within the

impact body. When it passes through the coil on impact device, it induces an electric voltage which is proportional

to the velocity of the impact body.



KEY FEATURES



·High accuracy

·Light weight

·For all metallic materials

·Wide measuring range: Rockwell B&C, Brinell, Vickers, Shore and HL
·Automatic conversion to Brinell, Rockwell, Vicker and Shore
·Test in any directions
·Impact devices: D, DC, DL, C, D+15, E, G
·All impact devices interchangeable
·Menu operation
·Large LCD display with backlight
·RS232/USB interface to PC and micro-printer
·Automatic mean, max., min. value display
·Data management software
·Comply to standard ASTM A956

Principle: Leeb hardness measurement
Accuracy: +/-0.5%@HL=800
Display: Large graphic LCD with EL backlight
Hardness scale:HL/HRC/HRB/HB/HV/HS
Measuring range:HL200-960 / HRC19-70 / HRB13-109 / HB20-655 / HV80-1027 / HS31.9-102.8
Impact device: D (standard) DC/DL/C/D+15/E/G (optional)
Materials: 9 common metal materials
Memory: 960 data in 8 blocks
Statistics function: Average / Max. / Min. / value
Interface: RS232 to PC / Micro-printer
Indicator: Low battery
Power off: Auto
Power supply: 1.5v AA battery x 4
Working environment: -40~+80°C (main unit) -20~+120°C (impact device)
Standard: ASTM A956
Dimension (mm): 195x84x38
Net weight (g): 550


Material:                                 HL     HRC     HRB      HB        HV         HS
Steel & cast steel                174-960  19-68  38-100   80-683   80-1027  32-102
Cold work tool st.                 174-960  20-67    --         --          80-900     --
Stainless steel                     174-960  20-62  46-102   85-655   85-800     --
Grey cast iron                      174-960    --         --        93-334      --          --
Nodular cast iron                  174-960    --        --        30-390       --        --
Cast aluminium alloys           174-960    --         --        20-160       --        --
Copper/Zinc alloys (brass)     174-960    --    13-95      40-173       --        --
Cu Al/ Cu Sn alloys (bronze)  174-960    --     --           60-290       --        --
Wraught copper alloys           174-960     --     --           45-315       --        --

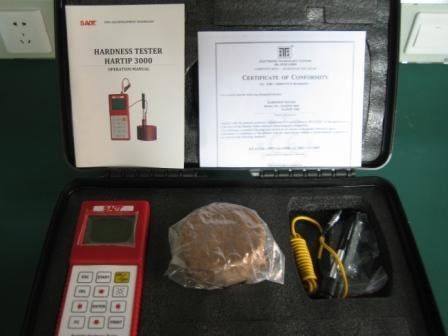

Standard package:

Hartip3000 main body

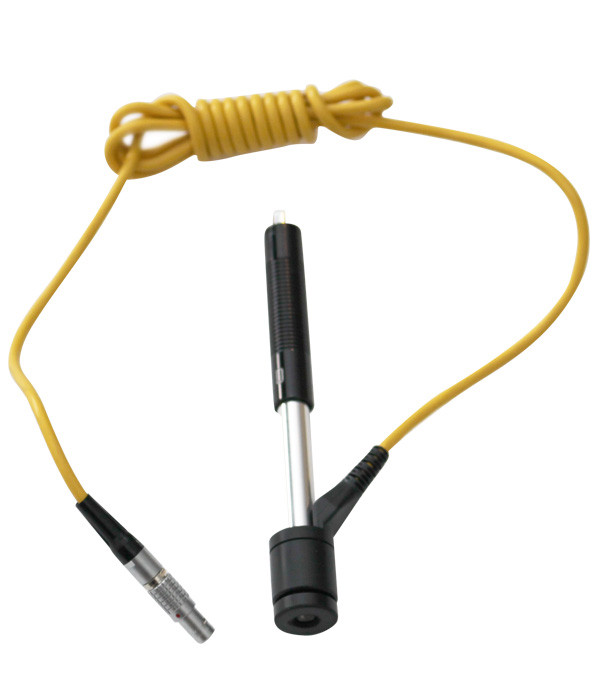

External Impact device D

Test block D
Battery 4×1.5V AA alkaline battery

Carrying case

Cleaning brush
Manual

Optional accessories:

Micro-printer

Impact body DC, D+15, G, C, E, DL
Data managing software

A set or special support ring

Leather case

Connection cable to PC or Printer
