20,60,85 Three-angle Portable Gloss Meter GMS With Internal Bluetooth / USB Interface for Painting

China 20,60,85 Three-angle Portable Gloss Meter GMS With Internal Bluetooth / USB Interface for Painting supplier
20,60,85 Three-angle Portable Gloss Meter GMS With Internal Bluetooth / USB Interface for Painting supplier 20,60,85 Three-angle Portable Gloss Meter GMS With Internal Bluetooth / USB Interface for Painting supplier 20,60,85 Three-angle Portable Gloss Meter GMS With Internal Bluetooth / USB Interface for Painting supplier 20,60,85 Three-angle Portable Gloss Meter GMS With Internal Bluetooth / USB Interface for Painting supplier 20,60,85 Three-angle Portable Gloss Meter GMS With Internal Bluetooth / USB Interface for Painting supplier 20,60,85 Three-angle Portable Gloss Meter GMS With Internal Bluetooth / USB Interface for Painting supplier 20,60,85 Three-angle Portable Gloss Meter GMS With Internal Bluetooth / USB Interface for Painting supplier

Large Image :  20,60,85 Three-angle Portable Gloss Meter GMS With Internal Bluetooth / USB Interface for Painting

Product Details:

Place of Origin: Beijing
Brand Name: SADT
Certification: CE ISO9001
Model Number: GMS

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD300-600/Pcs
Packaging Details: Standard package
Delivery Time: Within 3 days after receiving payment
Payment Terms: T/T in advance
Supply Ability: 50pcs/week
Contact Now
Detailed Product Description
Application: Painting, Printing, Floor Material, Plastic, Ceramics, Leather, Hardware, Plating Aperture: 20°, 60°, 85°
Memory: 900 Data Or 30 Groups, CF Card (optional) Dimension (mm): 164×58×88
Net Weight(g): 520 Software: Data Managing Software
Power Supply: +5V, AA*4 Warranty: 1 Year

Three-angle Portable Gloss Meter GMS With Internal Bluetooth / USB Interface





GM Series gloss meters are designed and manufactured according to internation standards ISO2813, ISO7668, ASTM D523, ASTM D2457 and China standards GB/T9754, GB/T13891, GB/T7706 and GB/ T8807. The technical parameters is up to JJG696-2002. GM Series gloss meters can be widely used to measure painting, coating, plastic, ceramics, leather products, paper, printing, floor materials and so on.





KEY FEATURES

  • Precision appearance design, more suitable for human characteristic, easy to use.
  • Three-angle gloss data is displayed simultaneously, can satisfy various require-ments. (Only for GMS)
  • Large memory for measurement data.
  • Latest Bluetooth function and removable memory card to transmit data conveniently.
  • Speical designed gloss software to analysis data and output.
  • Prompt for low battery and full memory.

With internal Bluetooth module or USB interface, GM gloss meter can transfer data with PC easily. The measuring data also can be exported to printer via printing interface. Optional SD card makes the memory as large as you want .



Specifications:



Model GMS
Application Painting, printing, floor material, plastic, ceramics, leather, hardware, plating
Measuring Range(Gu) 0~120, 120~2000@ 20°
0~120, 120~1000 @ 60°
0~120, 120~160 @ 85°
Readout Error(Gu) ±1.5 (0~120)
±1.5%(120~2000)
Repeatability ±0.5 (0~120)
±0.5%(120~2000)
Aperture (mm) 20°, 60°, 85°
Measurement Spot (mm) 10×10 @ 20°
9×15 @ 60°
5×38 @ 85°
Memory 900 data or 30 groups, CF card (optional)
Interface USB / printer /Bluetooth (Bluetooth is only avalaible for GMS)
Software Data managing software
Power Supply +5V, AA*4
Working Environment 10~40°C, <85%RH,
Dimension (mm) 164×58×88
Net Weight(g) 520
Standards ISO2813, ISO7668, ASTMD 523, ASTM D2457, GB/T9754, GB/T13891, GB/T7706, GB/T8807







_01_02

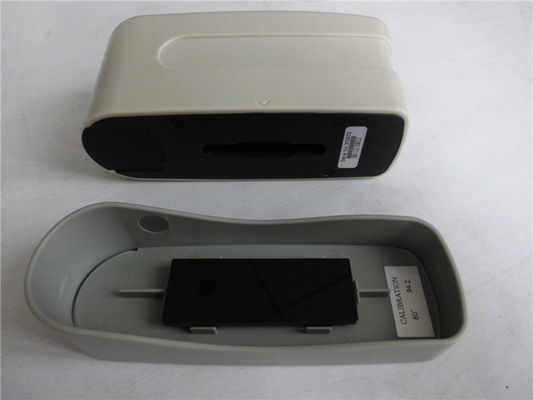

20,60,85 Three-angle Portable Gloss Meter GMS With Internal Bluetooth / USB Interface for Painting
