|Accuracy:||Standard Deviation:within ΔE*ab:0.1 ( When The White Calibration Plates Is Measured 30 Times, And Averaged)||Illumination/Light System:||45/0|
|Storage:||12 Groups Of Standard Samples, 30 Groups Of Values For Each Sample||Display:||L*a*b*, L*C*H*, ΔE*ab, Δ(L*a*b*), Δ(L*C*H*)|
|Power Supply:||4 X AA-size Battery Or AC Adapter||Weight (g):||330(without Bat Te R I E S )|
|Dimension (mm):||110x60x190||Warranty:||1 Year|
Multifunctional Color Difference Meter Portable Stable With High Precision / Multifunction Precise color reader SC30, stable, durable and economy color difference meter
SC30 is developed according to international CIEI1931, 1976 and other releant standards and national standards, it is a new economic and practical general colorimeter equipped with the latest imported LED light source and sensor which make it stable, durable and economy. The menu-oriented interface that makes operation simple and easy to understand. SC30 is not only widely used on Quality department about the color difference but also used on the school teaching, scientific research and colr design.
Button& menu opertion, easy to understand, reasonable price.
Commonly used of two measurement modes: Lab &Lch, easy to switch measurement.
Automatically display the color difference between the sample and standard sample, also display the color trend degree.
Practical of the average measurement mode, uneven surface also can measure.
The color difference software can analysis, exchange the color difference graph and data.
The optional micro-printer can output the color difference data in time.

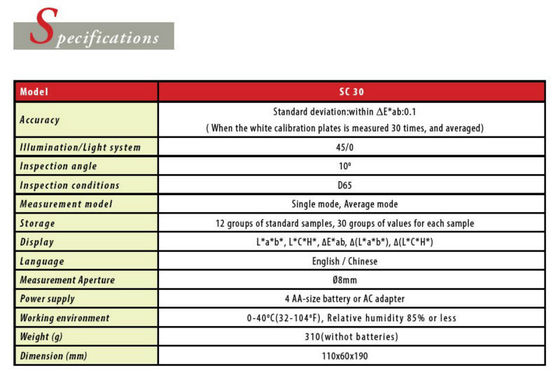

Standard deviation: Within Δ E*ab: 0.1
( When the white calibration plates is measured 30 times, and averaged)
Illumination/Light system 45/0
Inspec tion angle 10o
Inspec tion conditions D65
Measurement model Single mode, Average mode
Storage 12 groups of standard samples, 30 groups of values for each sample
Display L*a*b*, L*C*H*, Δ E*ab, Δ (L*a*b*), Δ (L*C*H*)
Language English / Chinese
Measurement Aperture Ø 8mm
Power supply 4 AA-size battery or AC adapter
Working environment 0-40oC(32-104oF ), R e l at i ve humidit y 85% or less
Weight (g) 310(withot bat te r i e s )
Dimension (mm) 110x60x190
SC30 main unit
Accuracy: Standard deviation:within ΔE*ab: <0.08 ( When the white calibration plates is measured 30 times, and averaged)
Measurement model: Single mode, Average mode
Storage: 50 groups of standard samples, 30 groups of values for each sample
Display: L*a*b*, L*C*H*, XYZ, ΔE*ab, Δ (L*a*b*), Δ (L*C*H*), ΔXYZ
