Precise Color Difference Meter Economic With Automatically Display
SC50 is developed according to international CIE1931, 1976 and other relevant standards and national standards, it is a new economic and practical general colorimeter equipped with the latest imported LED light source and sensor, which make it stable, durable, and economy. The menu-oriented interface that makes operation simple and easy to understand.
SC50 is not only widely used on Quality department about the color difference, but also used on the school teaching, scientific research, and color design.
Button & menu operation, easy to understand, reasonable price.
Commonly used of two measurement modes: Lab&Lch, easy to switch measurement.
Automatically display the color difference between the sample and standard sample, also display the color trend degree.
Practical of the average measurement mode, uneven surface also can measure.
The color difference software can analysis, exchange the color difference graph and data.
The optional Micro-printer can output the color difference data in time.

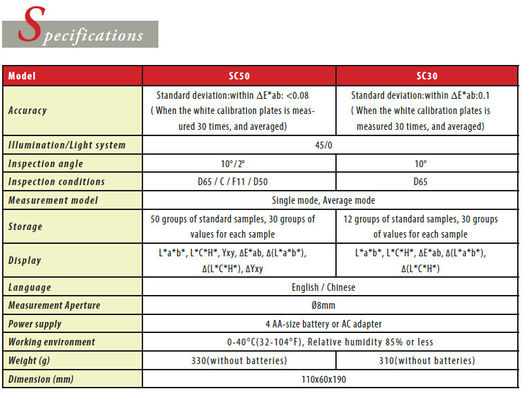

Accuracy Standard deviation:within ΔE*ab: <0.08
( When the white calibration plates is measured 30 times, and averaged)
Illumination/Light system 45/0
Inspec tion angle 10° / 2°
Inspec tion conditions D65 / C / F11 / D50
Measurement model Single mode, Average mode
Storage 50 groups of standard samples, 30 groups of
values for each sample
Display L*a*b*, L*C*H*, Yxy, ΔE*ab, Δ(L*a*b*), Δ(L*C*H*), ΔYxy
Language English / Chinese
Measurement Aperture Ø8mm
Power supply 4 AA-size battery or AC adapter
Working environment 0-40° C(32-104° F ) , R e l at i ve humidit y 85% or less
Weight (g) 330(without bat te r i e s )
Dimension (mm) 110x60x190
Standard package - SC50
Main unit 1
Calibration plate 1
USB cable 1
Software CD 1
Power adapter 1
Operation manual 1
Carrying case 1
