400nm Led Spectrophotometer With Color Qc Software

Place of Origin Made in China
Brand Name SADT
Certification ISO9001, CE, SGS
Model Number SC100A
Minimum Order Quantity 1pc
Price Negotiation
Packaging Details rigid carrying case
Delivery Time 3 days upon advanced payment
Payment Terms T/T, Western Union, Paypal
Supply Ability 5000 pcs /year
Product Details
Illumination / Observa-tion System D/8(Diffused Lighting, 8 Degrees Observe Angle), SCI(specular Reflection Included)/SCE(specularreflection Excluded)simultaneous Measurement, (conforms To CIE No.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition C Standards) Illumination Lightsource CLEDs(entire Wavelength Balanced LED Light Source
Sphere Size Φ40mm, Diffused Reflection Surface Coating Sensor Dual Light Path Sensor Array
Wavelength Range 400nm-700nm Wavelength Interval 10nm
Half Spectral Width 5nm Reflecttivity Range 0 To 200%
Observation Angle 2°/ 10°degrees Measurement Light Source A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF
Displayed Data SPD Distribution/data, Sample’s Color Values, Color Difference Values/graph, Pass/fail Results, Colorerror Tendency, Color Simulation, Display Measurement Area, History Data Color Simulation, Manual Input Standard Sample, Generate Measurement Report Measurement Time 1 Second
Measurement Time Interval 2 Seconds Test Aperture 10mm 4mm/6mm(Optional
Color Space CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance Color Difference Formulas ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00
Other Colorimetric Indices WI(ASTM E313-10, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby), YI(ASTM D1925, ASTM E313-00, ASTM E313-73), Tint(ASTM E313, CIE,Ganz) Metamerism Index Milm, Stick Color Fastness, Color Fastness Repeatability Light Splitting Reflectivity, Standard Deviation Within 0.08% Color Values;ΔE*ab<=0.03(After Calibration, Standard Deviation Of 30 Measurements On Test White Board, 5 Second Intervals), Maximum: 0.05
Battery Capacity Rechargeable, 10000 Continuous Tests, 7.4V/6000mAh Interface USB
Data Storage 20000 Test Results Light Source Life 5 Years, 1.5 Million Tests
Inter-instrument Agree-ment ΔE*ab Within 0.2(BCRA Color Charts II, Average Of The 12 Charts) Dimension 181*73*112mm(L*W*H)
Weight About 550g(does Not Include Battery’s Weight) Display True Color Screen That Includes All Colors
Work Environment 0°C~45°C, Relative Humidity 80% Or Below( At 35°C ),no Condensation Storageenvironment -25°C- 55°C,relative Humidity 80% Or Below(at 35°C ),no Condensation
High Light

400nm led spectrophotometer


led spectrometer with color qc software


led spectrophotometer with color qc software

Leave a Message
Product Description

Spectrophotometer  SC 100A


SC100ASpectrophotometeradopts inter-nationally agreed observe condition D/8 (Diffused lighting, 8 degrees observe angle)and SCI(specular reflection included)/


SCE(specular reflection excluded). It could be usedfor color matching for many industries and widelyused in painting industry, textile industry, plasticindustry, food industry, building material industryand other industries for quality control.




  • Camera view to catch the testing area (Patent Right Num-ber: ZL20130519382X)

In previous measurement instrument, we can only aim at thetesting area approximately, and this may introduce errors.Our spectrophotometers include a camera in our opticalsystem, and the user can clearly see the tested area to avoid measurement errors.


  • Uses CLEDs light source – spectrally balanced LED light source (Patent Right No.: ZL2013107548347)

LED light source that has balanced intensity across visiblespectrum avoids the spectral deficiency in certain parts of the spectrum in common white LEDs, and guarantees the speed of the measurement and the accuracy of the results.This research finding has been published in national leading, SCI included optical journal, Chinese Optics Letter.


  • Every Test calibration technology (ETC) (Patent Right No.:ZL201310373360.1)

Currently, most instruments use standard white boards forcalibration. When white board is damaged, the instrument’saccuracy or precision will no longer be guaranteed. In CHN-Spec’s spectrophotometers, we adopt innovative ETC(EveryTest Calibration); standard white board is included in theoptical system, and therefore has reliable accuracy and re-peatability in every measurement.


  • Color QC Software

Our spectrophotometer comes with PC color QC software,which is applicable in various industries for management ofcolor data. It is used for store test result, generate test reportand print test report after connect with printer.


  • Automatic gloss compensation technology (Patent Right No.:ZL201310511357.1)

Gloss will greatly affect the measurement of color. Our in-strument adopts automatic gloss compensation technologywhich guarantees the accuracy of color measurement value for surfaces of different gloss.


  • Innovative light splitting SCS optical engine (Patent Right No.:ZL201210337619.2)

Adopt innovative single-grating-dual-light-paths light splitting system:SCS optical engine which creates the best measurement repeatability forportable spectrophotometers and guarantees accurate measurement ofsurface color of materials.Low battery prompt function, full data spaceprompt function.


  • The most complete light sources compares with similar products.

Comparing with similar products, our spectrophotometers offer the most complete, 28kinds of standard light sources and 40 measurement color value indicators; It can alsocustomize measurement methods according to your requirement, and satisfy all your colormeasurement needs.

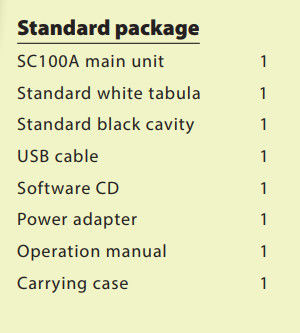

Standard package


SC100A main unit 1

Standard white tabula 1

Standard black cavity 1

USB cable 1

Software CD 1

Power adapter 1

Operation manual 1

Carrying case 1


Optional accessory


Micro Printer




Model SC 100A
Illumination / observa-tion system

d/8(Diffused lighting, 8 degrees observe angle), SCI(specular reflection included)/SCE(specularreflection excluded)simultaneous measurement, (conforms to CIE No.15, ISO 7724/1, ASTM E1164,

DIN 5033 Teil7, JIS Z8722 Condition c standards)

Illumination Lightsource CLEDs(entire wavelength balanced LED light source)
Sphere Size Φ40mm, diffused reflection surface coating
Sensor dual light path sensor array
Wavelength range 400nm-700nm
Wavelength interval 10nm
Half spectral width 5nm
Reflecttivity range 0 to 200%
Reflecttivity resolution 0.01%
Observation angle 2°/ 10°degrees
Measurement light source A,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,DLF,TL83,TL84,NBF,U30,CWF
Displayed data

SPD distribution/data, sample’s color values, color difference values/graph, pass/fail results, colorerror tendency, color simulation, display measurement area, history data color simulation, manual

input standard sample, generate measurement report

Measurement time 1 second
Measurement time interval 2 seconds
Test Aperture



Color space CIE-L*a*b, L*C*h, L*u*v, XYZ, Yxy, Reflectance
Color difference formulas ΔE*ab, ΔE*CH, ΔE*uv, ΔE*cmc(2:1), ΔE*cmc(1:1),ΔE*94,ΔE*00
Other colorimetric indices

WI(ASTM E313-10, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger, Ganz, Stensby), YI(ASTM

D1925, ASTM E313-00, ASTM E313-73), Tint(ASTM E313, CIE,Ganz)

Metamerism index Milm, Stick color fastness, Color fastness


light splitting reflectivity, standard deviation within 0.08%

color values;ΔE*ab<=0.03(After calibration, standard deviation of 30 measurements on test white

board, 5 second intervals), Maximum: 0.05

Battery capacity rechargeable, 10000 continuous tests, 7.4V/6000mAh
Interface USB
Data storage 20000 test results
Light source life 5 years, 1.5 million tests
Inter-instrument agree-ment ΔE*ab within 0.2(BCRA color charts II, average of the 12 charts)
Dimension 181*73*112mm(L*W*H)
Dimension 181*73*112mm(L*W*H)
Weight about 550g(does not include battery’s weight)
Display True color screen that includes all colors
Work environment 0°C~45°C, relative humidity 80% or below( at 35°C ),no condensation
Storageenvironment -25°C- 55°C,relative humidity 80% or below(at 35°C ),no condensation
