Big Screen 60 Degree Digital Gloss Meter For Marble

Place of Origin Made in China
Brand Name SADT
Certification ISO9001, CE, SGS
Model Number GH60
Minimum Order Quantity 1pc
Price Negotiation
Packaging Details rigid carrying case
Delivery Time 3 days upon advanced payment
Payment Terms T/T, Western Union, Paypal
Supply Ability 5000 pcs /year
Product Details
Measuring Angle 60° Measuring Range 0-200GU
Measurement Spot (mm) 9x15 Resolution (Gu) 1
Repeatability(Gu) ±1(0~100); ±1%(100~200) Readout Error(Gu) ±1.5,±1.5%
Auto Power-off Time - Measuring Modes Basic Mode
Calibration Automatic Language Chinese & English
Storage Basic Mode: 1000 Display 3.5” TFT
Size (mm) 160*75*90 Weight 350g
Power Supply 3200mAh Li-ion Bat- Tery,>10000 Times (within 8 Hours) Lnterface USB/RS-232
PC Software N/A Operation Temperature 0~40°C(32~104°F)
Storage Temperature -20~50°C(-4~122°F) Humidity <85% RH, Without Condensation
Standards ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457 Chromaticity Corresponding Corresponding With CIE 1931(2°) Under CIE C Light Source
High Light

60 degree digital gloss meter

,

60 degree gloss meter for marble

,

digital gloss meter for marble

Leave a Message
Product Description

Gloss Meter GH60



GH60 is an economic gloss meter with independent intellectualproperty rights. Itfeatures with 60° angle, widely used to test glossiness in these industries, such as automobile, paint,ink, stoving varnish, coating, wood products; marble, granite,vitrified polished tile, pottery brick and porcelain; plastic, paper; hardwareindustries, etc.



KEY FEATURES



  • 60° angle for semi gloss
  • Concise appearance, feel good
  • Display 3 sets of measurement data, good for comparison
  • Built-in lithium ion rechargeable battery
  • Basic model measurement can meet basic glossiness testing requirements
  • One button for all angles measurement at the same location
  • Comply with international standards
  • Stable performance, easy to read data.

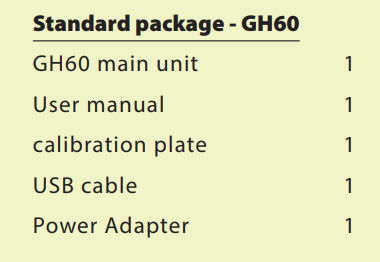

Standard package - GH60



GH60 main unit 1

User manual 1

calibration plate 1

USB cable 1

Power Adapter 1



Optional accessory


Miniature printer





Specifications





Model GH60
Measuring Angle 60°
Measuring Range 0-200GU
Measurement Spot (mm) 9x15
Resolution (Gu) 1
Repeatability(Gu) ±1(0~100);±1%(100~200)
Readout Error(Gu) ±1.5,±1.5%
Auto Power-off Time 30s
Measuring Modes Basic mode
Calibration Automatic
Language Chinese & English
Storage Basic mode: 1000
Display 3.5” TFT
Size (mm) 160*75*90
Weight 350g
Power supply

3200mAh Li-ion Bat-

tery,>10000 times

(within 8 hours)

lnterface USB/RS-232
PC Software N/A
Operation Temperature 0~40°C(32~104°F)
Storage Temperature -20~50°C(-4~122°F)
Humidity <85% RH, without condensation
Standards ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
