Product Details
Warranty 12 Months Product Name HBC Portable Hammering Brinell Hardness Tester
Battery Pack 6V NI-MH Charging Power Supply 220VAC
Key Words Metal Hardness Tester Certification ISO9001 SGS
High Light

12pcs one set hardness tester parts

,

support rings hardness tester parts

,

lightweight hardness tester parts
Leave a Message
Product Description





Special suport rings with 12pcs for one set for hollow-spherical,spherica,cylindrical surface



Impact Body & Support Rings

SADT provides optional accessories to satisfy customers’ different requirements, which includes impact bodies, standard support rings, special support rings and etc.



Specifications

Part No. Size(mm) Suitable for the following test surfaces
Support rings for impact devices D/DC/D+15/C/E
D6 Ø19.5×5.5

plane/cylindrical/hollow-cylindrical/spherical/hollow-spherical

R≥60mm
D6a Φ13.5×5.5

plane/cylindrical/hollow-cylindrical/spherical/hollow-spherical

R≥30mm
D6b/D+15 Φ13.5×10.8×5.5

plane/cylindrical/hollow-cylindrical/spherical/hollow-spherical

R≥30mm
Z 10-15 20×20×7.5

cylindrical, R10mm-15mm

R<10mm not possible, R≥30mm D6/D6a
Z 14.5-30 20×20×6.5 cylindrical, R14.5mm-30mm
Z 25-50 20×20×6.5 cylindrical, R25mm-50mm

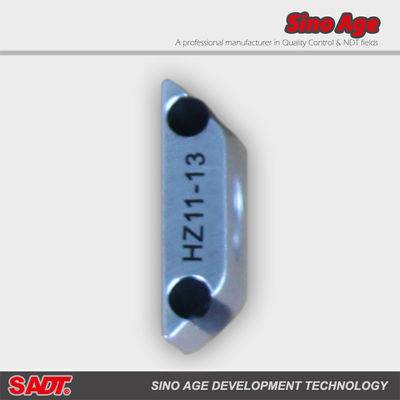

HZ 11-13 20×18×5 hollow-cylindrical, R11mm-13mm
HZ 12.5-17 20×20×5 hollow-cylindrical, R12.5mm-17mm

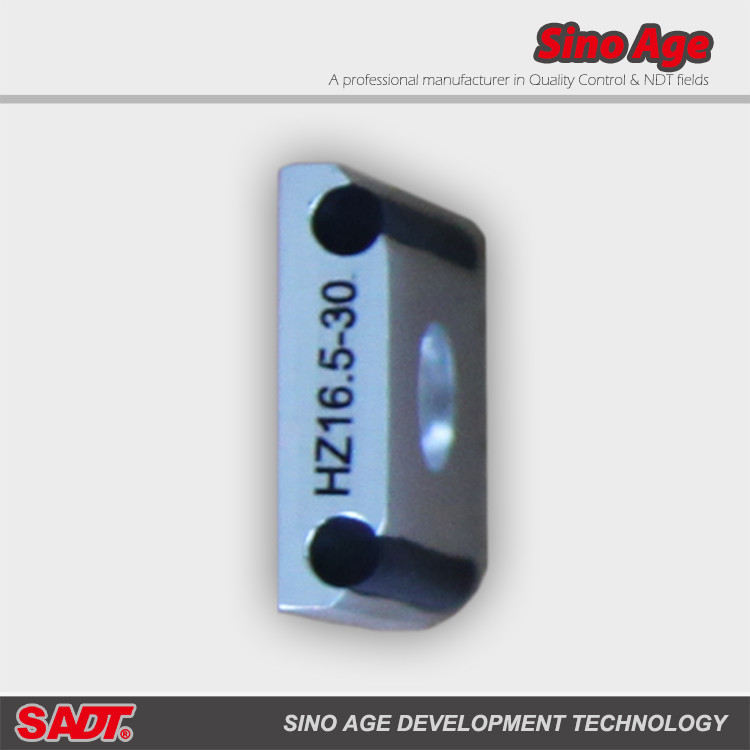

HZ 16.5-30 20×20×5 hollow-cylindrical, R16.5mm-30mm
K 10-15 Φ20×7.7 spherica, R10mm-13mm
K 14.5-30 Φ20×6.7 spherica, R14.5mm-30mm
HK 11-13 Φ17×5 hollow-spherical, R11mm-13mm
HK 12.5-17 Φ18×5 hollow-spherical, R12.5mm-17mm
HK 16.5-30 Φ20×5 hollow-spherical, R16.5mm-30mm
UN Φ52×20×16 Universal
K 10-15 Φ20×7.7 spherica, R10mm-13mm
K 10-15 Φ20×7.7 spherica, R10mm-13mm
Notes: R<10mm not possible, R≥30mm D6/D6a
Support rings for impact device G
G6 Φ29.5×7

plate / cylindrical / hollow-cylindrical / spherical / hollow-spherical

R≥100mm
G6a Φ19.5×7

plate / cylindrical / hollow-cylindrical / spherical / hollow-spherical

R≥50mm

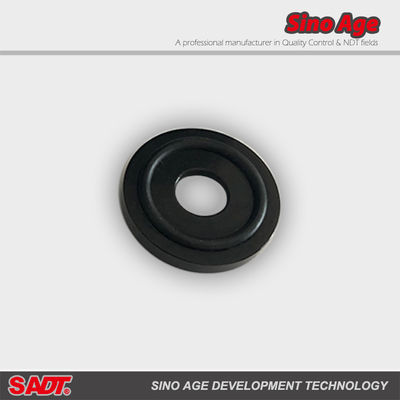

Standard Support Ring

D6

D6a

D6b/D+15

G6

G6a



Special Support Ring

Z10-15

Z14.5-30

Z25-50

HZ11-13

HZ12.5-17

HZ16.5-30

K10-15

K14.5-30

HK11-13

HK12.5-17

HK16.5-30

UN
