Bluetooth / Rs232 Leeb Hardness Tester Portable Lcd Display High Accuracy
| Place of Origin | Beijing |
|---|---|
| Brand Name | SADT |
| Certification | ＣＥ ＩＳＯ９００１ |
| Model Number | HARTIP2000 |
| Minimum Order Quantity | 1pc |
| Price | USD200-500/Pcs |
| Packaging Details | Standard package |
| Delivery Time | Within 3 days after receiving payment |
| Payment Terms | T/T in advance |
| Supply Ability | 50pcs/week |
Product Details
| Accuracy | ±0.3% @ HL=800, Repeatability: ±2HL | Language | English |
|---|---|---|---|
| Probe | DU | Memory | 300 Data |
| Display | Digital LCD With Backlight | Dimension (mm) | 127x66x29 |
| Net Weight (g) | 240 | Warranty | 1 Year |
| High Light | bluetooth leeb hardness tester,rs232 leeb hardness tester,lcd display portable leeb hardness tester |
||
Product Description

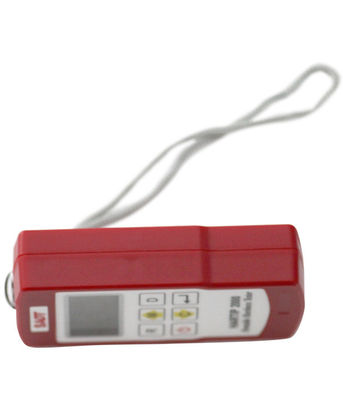

Bluetooth / RS232 Portable Hardness Tester LCD Display With High Accuracy
HARTIP 2000 is an innovative portable Leeb hardness tester with our new patent technology. Which make
HARTIP 2000 a universal impact direction hardness tester. It is no need to set up impact direction when taking
measurement by any angle. Therefore, HARTIP 2000 offers a linear accuracy comparing to the angle
compensating method. HARTIP 2000 is also a cost saving hardenss tester and has many other features.
Key Features:
- Universal impact direction mode, it does not need to setup different impact direction, it will be recognized automatically
- High accuracy: ±2HL(0.3% @HL800)
- Linear accuracy for any angles
- No compensation for impact direction
- Dual values( Leeb value and one conversion value) can be displayed at the same screen
- Big LCD display with backlight
- Ten testing materials including forged steel,
- It has strength conversion value
- 300 data for memory
- Customer re-calibration allowed
- Power off automatically
- More economic and more convenient to use
Specifications:
| SADT HARTIP 2000/HARTIP2000 D&DL | |
| Principle | Leeb hardness measurement |
| Accuracy | ±0.3% @ HL=800, Repeatability: ±2HL |
| Display | Digital LCD with backlight |
| Hardness scale | HL/HRC/HRB/HB/HV/HS/σb |
| Measuring range | HL100-960 / HRC0.9-83.2 / HRB1-140 / HB1-1878 / HV1-1698 / HS0.5-1370 / σb(rm)1-6599N/mm² |
| Probe | DU (External) /DU-DL 2-in-1* DL, D+15, G, C, E (optional) |
| Impact direction | Universal angle (UA) type |
| Materials | 10 common metal materials |
| Memory | 300 data can be stored and re-readable |
| Statistics | Calculated automatically |
| Re-calibration | Allowed by user |
| Indicator | Low battery |
| Communication interface | Bluetooth (integrated with main unit, made-to-order) to bluetooth micro-printer |
| Auto power off | Auto |
| Power supply | 1.5V AA alkaline battery x 2 |
| Working environment | -10~+45ºC |
| Dimension (mm) | 127x66x29 |
| Net weight (g) | 240 |
| Standards | Conforming to ASTM A956, DIN 50156, GB/T 17394-1998 |
| *: DU-DL 2-in-1 probe is only available for HARTIP2000 D&DL. | |
