Digital Ultrasonic Wall Thickness Gauge 4 Digits LCD With Backlight

Digital Ultrasonic Wall Thickness Gauge 4 Digits LCD With Backlight

small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  Digital Ultrasonic Wall Thickness Gauge 4 Digits LCD With Backlight

Product Details:
Place of Origin: Beijing
Brand Name: SADT
Certification: CE ISO9001
Model Number: SA40
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: USD200-400/Pcs
Packaging Details: Standard package
Delivery Time: Within 3 days after receiving payment
Payment Terms: T/T in advance, Western Union
Supply Ability: 50pcs/week
Detailed Product Description
Testing Range: 0.70-300mm Memory: 400
Key Words: Ultrasonic Wall Thickness Gauge Display: 4 Digits LCD
Measuring Range: 0.7~300.0mm In Steel With PT-5 Probe Accuracy: 0.70~9.99mm ±0.05mm / 10.00~99.99mm ±(0.5%+0.01)mm 100.0~300.0 ±(1%+0.1)mm
Memory: 400 Data Power Supply: AA Battery X 2
Standard Probe: PT-5
High Light:

wall thickness gauge


ultrasonic thickness gauge

Digital Ultrasonic Wall Thickness Gauge 4 Digits Lcd With Backlight



SA40 is the miniaturized ultrasonic thickness gauge that can measure wall thickness and velocity. Our intelligent gauge is designed to measure the thickness of metallic and non-metallic materials such as steel, aluminum, brass, silver, oil, acrylic resin, glycerin, water glass and etc. It is quite versatile model which can be easily equipped with the low & high frequency probes as well as a high temperature probe.



Technique: pulse echo with dual probe
Display: 4 digits LCD with backlight
Measuring range: 0.7 to 300.0mm
Resolution : 0.01mm@0.8-99.99mm, 0.1mm@100.0-300.0mm
Velocity range: 500-9999m/sec.
Display circle: 1 sec.
Coupling indication
Memory: 400 data can be stored and re-readable
Units: mm or inch
Low battery indicator on LCD
Auto shut-off: after 5 min. of non-use
Power: 2 ea. 1.5V AA alkaline cells
Operating temperature: 0-40°C
Operating humidity: 20-90%RH
Weight: 240g

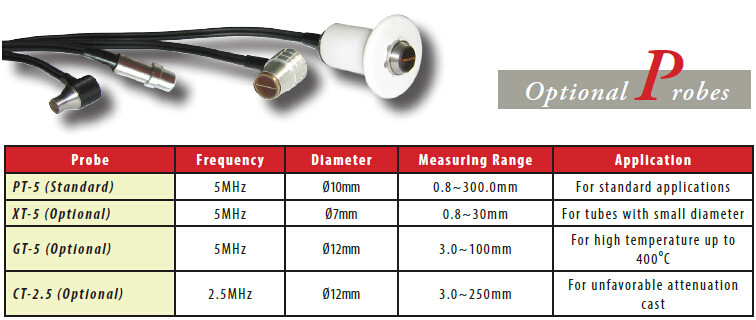

PT-5        5MHZ         Dia.Φ10mm       For standard applications
XT-5        5MHZ         Dia.Φ7mm        For tubes with small diameter
GT-5        5MHZ         Dia.Φ12mm       For high temperature up to 400℃
