Portable Ultrasonic Thickness Gauge 0.7mm - 300mm Pulse Echo With Dual Probe

  • Portable Ultrasonic Thickness Gauge 0.7mm - 300mm Pulse Echo With Dual Probe
  • Portable Ultrasonic Thickness Gauge 0.7mm - 300mm Pulse Echo With Dual Probe
Place of Origin Beijing
Brand Name SADT
Certification ＣＥ　ＩＳＯ９００１
Model Number SA40EZ
Minimum Order Quantity 1pc
Price USD100-300/Pcs
Packaging Details Standard package
Delivery Time Within 3 days after receipt of advanced payment
Payment Terms T/T in advance, Western Union, PAYPAL
Supply Ability 50pcs/week
Product Details
Language English Measuring Range 0.7~300.0mm In Steel With PT-5 Probe
Resolution 0.1mm Display 4 Digits LCD
Accuracy 0.7~99.9mm ±(0.5%+0.1)mm 100.0~300.0mm ±(1%+1)mm Unit Mm
Velocity 1000~9999m/s Coupling Indicator Yes
Working Environment 0~40oC, 20~90%RH Power Supply AA Battery X 2
High Light

wall thickness gauge

,

steel thickness gauge
Leave a Message
Product Description

Portable Ultrasonic Thickness Gauge 0.7mm - 300mm Pulse Echo With Dual Probe





SA40EZ is the miniaturized ultrasonic thickness gauge that can measure wall thickness and velocity. Our

intelligent gauge is designed to measure the thickness of metallic and non-metallic materials such as steel,

aluminum, brass, silver, oil, acrylic resin, glycerin, water glass and etc. It is quite versatile model which can

be easily equipped with the low & high frequency probes as well as a high temperature probe.







Specifications:



Display 4 digits LCD
Backlight Yes
Measuring range 0.70~300.0mm in steel with PT-5 probe
Resolution 0.1mm
Accuracy 0.7~99.9mm ±(0.5%+0.1)mm
100.0~300.0mm ±(1%+1)mm
Unit mm
Velocity 1000~9999m/s
Coupling indicator Yes
Calibration Auto
Memory
Low battery indicator Yes
Working environment 0~40°C, 20~90%RH
Power off Auto
Power supply AA battery x 2
Dimension (mm) 127x66x29
Net weight (g) 240
Standard probe PT-5
Optional probes XT-5 / GT-5 / CT2.5





Optional Probes


PT-5 5MHZ Dia.Φ10mm For standard applications
XT-5 5MHZ Dia.Φ7mm 　 For tubes with small diameter
GT-5 5MHZ Dia.Φ12mm 　For high temperature up to 400℃
CT-2.5 2.5MHZ Dia.Φ12mm 　For unfavorable attenuation

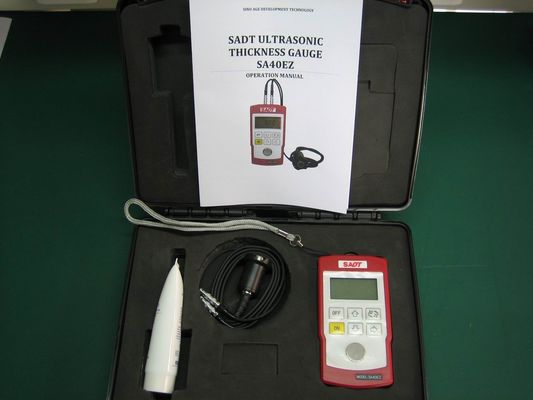

Standard Package:



SA40EZ main unit  x1

Standard 5MHz probe PT-5 with probe holder  x1

Built-in calibration block  x1

Coupling paste for normal temperature  x1

Test certificate  x1

Operation manual  x1

Carrying case  x1
