Portable Inverted Metallurgical Microscope Practical for Testing Metals / Alloys

Place of Origin Beijing
Brand Name SADT
Certification CE ISO9001
Model Number XJP-6A
Minimum Order Quantity 1pc
Price USD1800-2500/Pcs
Packaging Details Standard package
Delivery Time Within 3 days after receiving payment
Payment Terms T/T in advance
Supply Ability 50pcs/week
Product Details
Observation Method Inverted, Bright Field, Polarizing Magnification 100X,125X, 200X, 250X, 400X, 500X,1000X, 1250X
Stage 180mm X 155mm Dimension(mm) 530 X 260 X 260
Net Weight (kg 12 Warranty 1 Year
Illuminator 6V, 30W Eyepiece 10X, 12.5X
High Light

portable metallurgical microscope

,

trinocular metallurgical microscope

Leave a Message
Product Description

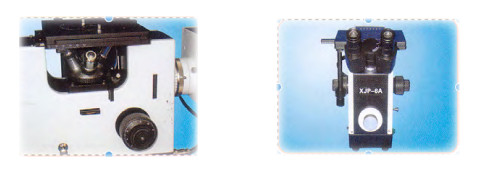

Portable Inverted Metallurgical Microscope Practical for Testing Metals / Alloys



XJP-6A metalloscope can be widely used in such departments as factories, schools and science research

institutions for indentifying and analyzing the microstructure of all kinds of metal and alloys. It is the ideal

tools for testing metal material, verifying the quality of casting and analyzing metallographic organization of the material metalized.



Specifications:



Optical 100x - 1250x
Observation method Inverted, bright field, polarizing
Magnification 100X,125X, 200X, 250X, 400X, 500X,1000X, 1250X
Illuminator 6V, 30W
Stage 180mm x 155mm
Eyepiece 10X, 12.5X
Objective Plan achromat objective 10X,20X, 40X, 100X(oil)
Power supply 220V, 50Hz
Dimension(mm) 530 x 260 x 260
Net weight (kg) 12





Standard package - XJP-6A:



XJP-6A main body 1
Rotating binocular head(45 degree) 1
Mechanical stage 1
Plan eyepiece: 10x 2
Plan eyepiece: 12.5x 2
Plan reticle eyepiece: 10x 1
Plan achromat Objective 10x 1
Plan achromat Objective 20x 1
Plan achromat Objective 40x 1
S-plan achromat objective 100X oil 1
Stage plate 3
Stage plate holder 1
Lamp housing 1
Halogen lamp 6V 30W 1
Polarizer and Analyzer 1
Specimen holder 1
Operation manual 1
Carrying case 1





Optional accessories for XJP-6A


Digital camera
Adapter for digital camera witheyepiece
3 mega pixel CCD with eyepiece

Micrometer



_01_02

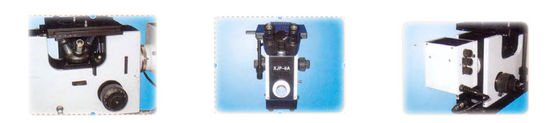

Portable Inverted Metallurgical Microscope Practical for Testing Metals / Alloys 2
