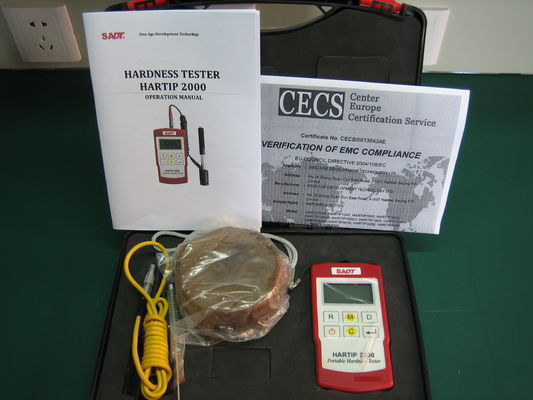

Innovative 2 In 1 Probe Digital Hardness Tester Auto Impact Direction
| Place of Origin | Beijing |
|---|---|
| Brand Name | SADT |
| Certification | ＣＥ/ＩＳＯ９００１ |
| Model Number | Hartip2000 D&DL |
| Minimum Order Quantity | 1pc |
| Price | USD400-900/Pcs |
| Packaging Details | Standard package |
| Delivery Time | within 3 days after receiving the payment |
| Payment Terms | T/T |
| Supply Ability | 50pcs/week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Accuracy | ±0.3% @ HL=800, Repeatability: ±2HL | Language | English |
|---|---|---|---|
| Probe | DU-DL 2-in-1 | Materials | 10 Common Metal Materials |
| Dimension (mm) | 127x66x29 | Net Weight (g) | 240 |
| Warranty | 1 Year | Certificate | ISO9001 SGS CE |
| Highlight | big lcd display digital hardness tester,innovative digital hardness tester,auto impact direction digital hardness tester |
||
Product Description
Digital Leeb Portable Hardness Tester with High Accuracy For Auto Impact Direction
HARTIP 2000 is an innovative portable Leeb hardness tester with our new patent technology. Which make
HARTIP 2000 a universal impact direction hardness tester. It is no need to set up impact direction when taking
measurement by any angle. Therefore, HARTIP 2000 offers a linear accuracy comparing to the angle
compensating method. HARTIP 2000 is also a cost saving hardenss tester and has many other features.
HARTIP2000 DL is equipped with SADT unique D and DL 2-in-1 probe.
Key Features:
- Universal impact direction mode, it does not need to setup different impact direction, it will be recognized automatically
- High accuracy: ±2HL(0.3% @HL800)
- Linear accuracy for any angles
- No compensation for impact direction
- Dual values( Leeb value and one conversion value) can be displayed at the same screen
- Big LCD display with backlight
- Ten testing materials including forged steel,
- It has strength conversion value
- 300 data for memory
- Customer re-calibration allowed
- Power off automatically
- More economic and more convenient to use
Specifications:
| SADT HARTIP 2000/HARTIP2000 D&DL | |
| Principle | Leeb hardness measurement |
| Accuracy | ±0.3% @ HL=800, Repeatability: ±2HL |
| Display | Digital LCD with backlight |
| Hardness scale | HL/HRC/HRB/HB/HV/HS/σb |
| Measuring range | HL100-960 / HRC0.9-83.2 / HRB1-140 / HB1-1878 / HV1-1698 / HS0.5-1370 / σb(rm)1-6599N/mm² |
| Probe | DU (External) /DU-DL 2-in-1* DL, D+15, G, C, E (optional) |
| Impact direction | Universal angle (UA) type |
| Materials | 10 common metal materials |
| Memory | 300 data can be stored and re-readable |
| Statistics | Calculated automatically |
| Re-calibration | Allowed by user |
| Indicator | Low battery |
| Communication interface | Bluetooth (integrated with main unit, made-to-order) to bluetooth micro-printer |
| Auto power off | Auto |
| Power supply | 1.5V AA alkaline battery x 2 |
| Working environment | -10~+45ºC |
| Dimension (mm) | 127x66x29 |
| Net weight (g) | 240 |
| Standards | Conforming to ASTM A956, DIN 50156, GB/T 17394-1998 |
| *: DU-DL 2-in-1 probe is only available for HARTIP2000 D&DL. | |
