B Scan IP65 SUD10 Ultrasonic Flaw Detector Automatic Gain , Peak Memory

Place of Origin Beijing
Brand Name SADT
Certification CE ISO9001
Model Number SUD10
Minimum Order Quantity 1pc
Price USD1000-3000/Pcs
Packaging Details Standard package
Delivery Time Within 3 days after receiving payment
Payment Terms T/T in advance, Western Union
Supply Ability 50pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Testing Range 0.5-10000mm Key Word Ultrasonic Flaw Detetor
Frequency Range (MHz) 0.5~20 Pulse Shift (μs) -20~+3400
Vertical Linearity Error ≤2.5% Horizontal Linearity Error ≤0.1%
Gain (dB) 0~120 Zero (μs) 0.0~99.99 Material Velocity
High Light

digital flaw detector


portable flaw detector

Leave a Message
Product Description

B Scan IP65 SUD10 Ultrasonic Flaw Detector Automatic Gain , Peak Memory




SUD10 digital ultrasonic flaw detector can be quick and easy, noninvasive, accurate manner workpiece internal

faults such as cracks, weld, stomatal, trachoma, inclusions, folded and so on.

· Automatic calibration of transducer Zero Offset and/or Velocity ;
· Automatic gain, Peak Hold and Peak Memory;
· Automatic display precise flaw location (Depth d, level p, distance s, amplitude, sz dB, ф);
· Automatic switch three staff gauge ((Depth d, level  p, distance s);
· Ten independence setup, any criterion can be input freely, we can work in the scene without test block;
· Big memory of 300 A graph and 30000 thickness value.
· B scan;
· RS232 port, communication with pc is easy;
· The embeded software can be online updated;
· Li battery, continue working time up to 8 hours;

Other assistant function:
· Display freeze;
· Automatic echo degree;
· Angles and K-value;
· Lock and unlock function of system parameters;
· Dormancy and screen savers;
· Electronic clock calendar ;
· Two gates setting and alarm indication;
· High-speed capture and very low noise;
· DAC, AVG, B Scan;Solid metal housing (IP65);
· Automatically make video of test process and play;
· Provides high contrast viewing of the waveform from bright, direct sunlight to complete darkness and easy to read from all angles;
· Powerful PC software and data can be exported to Excel;

One year warranty, battery not included.

Standard package:

SUD main unit        1
Straight transducer  1
Angle transducer     1
Probe cable          2
Charger Adapter      1

Optional Accessories:
· PC software

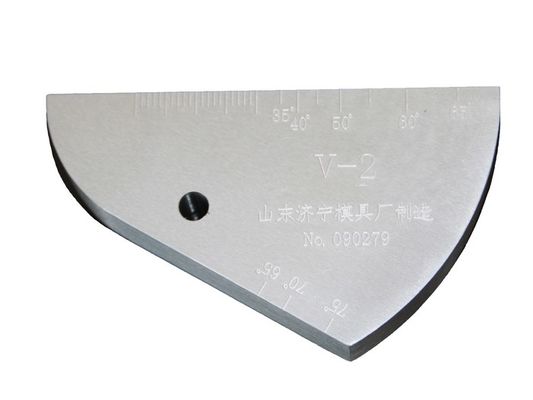

· test block

       Title                            Parameter                Title                                 Parameter
Measuring range(mm)       0.5 ~  10000           Measurement mode         single, dual, THRU
Vertical linearity error          ≤2.5%                     Reject                           0-80%
Horizontal linearity error       ≤0.1%                    Pulse shift(μs)               -20 ~+3400
Sensitivity margin               ≥60dB                     Zero(μs)                        0.0 ~  99.99
Dynamic scope                  ≥32dB                     Port type                       BNC
Resolution                         ≥40dB                     Operating temperature     -20~50
Frequency range(MHz)     0.5 ~  20                H×W×D(mm)                   240×180×50
Gain(dB)                         0 ~  110                 Weight(kg)                       2.2
Velocity                          1000 ~  13000








B Scan IP65 SUD10 Ultrasonic Flaw Detector Automatic Gain , Peak Memory 2
