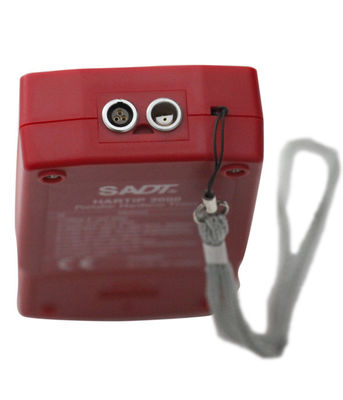

Battery Digital Lcd Backlight Portable Leeb Hardness Tester Rs232

Place of Origin China
Brand Name SADT
Certification CE, ISO9001
Model Number HARTIP2000D&DL
Minimum Order Quantity 1set
Price USD400-900/Pcs
Packaging Details Delivery package: carton
Delivery Time within 3 workdays after receipt of your advanced payment
Payment Terms T/T, Western Union
Supply Ability 500 Piece/Pieces per Month
Product Details
Principle Leeb Hardness Measuremen Display Digital LCD With Backlight
Hardness Scale HL/HRC/HRB/HB/HV/HS/σb Color Red
Net Weight (g) 240 Dimension (mm) 127x66x29
Power Supply 1.5V AA Alkaline Battery X 2 Warranty 1 Year
High Light

backlight portable leeb hardness tester

,

battery portable leeb hardness tester

,

backlight leeb hardness tester

Leave a Message
Product Description
Customer portable Leeb Hardness Tester Cost-saving ConvenientHARTIP 2000D&DL Metal Durometer

Details


HARTIP2000 is an innovative portable Leeb hardness tester with our new patent technology, which makes HARTIP 2000 a universal angle (UA) impact direction hardness tester.



It is no need to set up impact direction when taking measurement by any angle. Therefore, HARTIP 2000 offers a linear accuracy comparing to the angle compensating method.


HARTIP 2000 is also a cost saving hardness tester and has many other features.



HARTIP2000 DL is equipped with SADT unique D and DL 2-in-1 probe.



KEY FEATURES



•Universal angle impact direction

•No need to setup impact direction

•No compensation for impact direction

•Linear accuracy for any angles

•High accuracy: +/-2HL( or 0.3% @HL800)

•Big digital LCD display with backlight

•Ten testing materials including forged steel

•It has strength conversion value

•RS232 interface to micro-printer directly

•300 data for memory and re-read

•Customer re-calibration allowed

•Power on/off automatically





Specifications:




SADT HARTIP 2000D&DL hardness tester
Principle Leeb hardness measurement
Accuracy ±0.3% @ HL=800, Repeatability: ±2HL
Display Digital LCD with backlight
Hardness scale HL/HRC/HRB/HB/HV/HS/σb
Measuring range HL170-960/ HRC17-70/ HRB13-109/ HB20-655/ HV80-940
/ HS32-99.5 / σb(rm)255-2639N/mm²
Impact device D-DL 2-in-1, DL, D+15, G, C (optional)
Impact direction Universal angle (UA) type
Materials 10 common metal materials
Memory 300 data can be stored and re-readable
Statistics Calculated automatically
Re-calibration Allowed by user
Indicator Low battery
Communication
interface
RS232 to micro-printer
Bluetooth (optional) to bluetooth micro-printer
Auto power off Auto
Power supply 1.5V AA alkaline battery x 2
Working environment -10~+45ºC
Dimension (mm) 127x66x29
Net weight (g) 240
Standards Conforming to ASTM A956, DIN 50156, GB/T 17394-1998
