OLED Display Concrete Test Hammer Digital Schmidt Hammer High Accuracy USB2.0 Communication

OLED Display Concrete Test Hammer Digital Schmidt Hammer High Accuracy USB2.0 Communication
OLED Display Concrete Test Hammer Digital Schmidt Hammer High Accuracy USB2.0 Communication OLED Display Concrete Test Hammer Digital Schmidt Hammer High Accuracy USB2.0 Communication

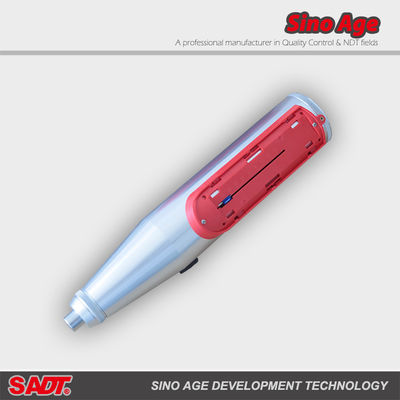

Large Image :  OLED Display Concrete Test Hammer Digital Schmidt Hammer High Accuracy USB2.0 Communication

Product Details:

Place of Origin: CHINA
Brand Name: SADT
Certification: CE, ISO9001, SGS
Model Number: HT-225DS

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: USD200-1000/Pcs
Packaging Details: carrying case with carton
Delivery Time: 2-5 days
Payment Terms: Western Union, T/T, PAYPAL
Supply Ability: 400 pcs per month
Detailed Product Description
Language: English Display: OLED
Accuray: +/-0.1R Measuring Range: 10-100N/mm2
Impact Energy: 0.225kgm (2.207Nm) Communication: USB2.0 Or Bluetooth
Certification: ISO9001/CE/SGS Warranty: 1 Year
Model: Ht-225ds
High Light:

digital schmidt hammer

,

concrete testing machines



HT225DS of Machanical and digital 2 in 1 digital concrete test hammer



HT225DS of Machanical and digital 2 in 1 digital concrete test hammer is an innovation based on the HT-225D, which digital part (data processor) can be separated from main body on site and coupled with mechanical hammer easily by a simple push. So once the mechanical hammer brokes during testing, you can easily exchange another mechanical hammer and continue to work. Its mechanical hammer can work as normal analog test hammer without digital part. HT-225DS means more convenient, more cost saving and more flexible. HT-225DS has Bluetooth and data in memory can be downloaded to PC or micro printer wirelessly by Bluetooth or USB port by cable.



KEY FEATURES

● High contrast OLED display

● All setup can be made on site

● Automatic calculating compressive strength

● Automatic correction of impact direction

● All data will be stored in memory

● All data can be transferred to PC by USB cable or Bluetooth

● Dual display for analogue ruler and digital value

● Digital/Mechanical 2-in-1



Specifications

Model HT-225DS
Type Digital / Mechanical 2-in-1
Display OLED digital
Measuring range 10-100N/mm2
Accuracy ±0.1R
Impact energy 0.225kgm (2.207Nm) for testing ordinary building and bridge construction
Communication USB2.0 or Bluetooth
Printing Bluetooth micro printer (optional)
Storage 1000 parts, 256 data for each part
Operating temperature -40º-60ºC
Power supply 3.7V Li-ion rechargeable battery charged via USB port
Dimension (mm) 280x75x60
Net weight 1.1kg



Standard package

HT-225DS main unit 1

Grinding wheel 1

USB cable 1

USB charger 1

Software CD 1

Operation manual 1

Carrying case 1



Optional accessory

Bluetooth micro printer
