Product Details:
Place of Origin: Beijing
Brand Name: SADT
Certification: CE ISO9001 SGS
Model Number: SA40+
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Packaging Details: Standard package
Delivery Time: Within 3 days after receiving payment
Payment Terms: T/T in advance, Western Union, PAYPAL
Supply Ability: 50pcs/week
Detailed Product Description
Language: English Unit: Mm/inch
Velocity: 1000~9999m/s Dimension (mm): 127x66x29
Net Weight (g): 240 Display: 4 Digits LCD Backlight
Brand: Sadt Testing Range: 0.7-300mm
Name: Thickness Gauge
High Light:

MEC ultrasonic thickness tester

,

MEC ultrasonic thickness meter

,

Backlight ultrasonic thickness tester

SA40plus of Metal ultrasonic thickness meter

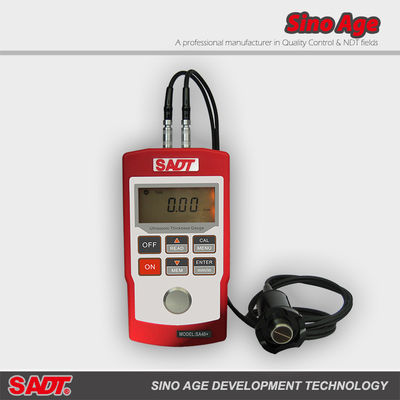

SA40plus of Metal ultrasonic thickness meter are the miniaturized ultrasonic thickness gauges that can measure wall thickness and velocity. Using new technique of multiple echo(echo-to-echo), SA40+ can measure wall thickness under paint. For a normal ultrasonic thickness gauge, you must remove paint on work piece, but with new SA40+, you can take measurement directly over the paint of work piece and you can get real thickness value of work piece. SA40+ has two measuring modes: normal mode and multiple echo(MEC) mode. By normal mode, SA40+ is a normal ultrasonic thickness gauge; by MEC mode, SA40+ can measure over coatings.



Specifications

Model SA40+
Display 4 digits LCD
Backlight Yes
Measuring range 0.70~300.0mm in steel with PT-5 probe (Normal mode) 3.00~40.00mm in steelThickness for coating: mode)
Resolution 0.01mm@0.70~99.99mm, 0.1mm@100.0~300.0mm
Accuracy 0.70~9.99mm ±0.05mm / 10.00~99.99mm ±(0.5%+0.01)mm 100.0~300.0 ±(1%+0.1)mm
Unit mm/inch
Velocity 1000~9999m/s
Coupling indicator Yes
Calibration Auto
Memory 400 data
Low battery indicator Yes
Working environment 0~40oC, 20~90%RH
Power off Auto
Power supply AA battery x 2
Dimension (mm) 127x66x29
Net weight (g) 240
Standard probe PT-5
Optional probes XT-5



Standard package - SA40+

SA40+ main unit 1

Standard 5MHz probe PT-5 with probe holder 1

Built-in calibration block 1

Coupling paste for normal tem[1]

Test certificate 1

Operation manual 1

Carrying case 1



Optional probes for SA40+

XT-5 probe

PT-5 probe with probe holder
