Portable Ultrasonic Thickness Gauge price SA40+ which can test thickness covered with coating

China Portable Ultrasonic Thickness Gauge price  SA40+ which can test thickness covered with coating supplier
Portable Ultrasonic Thickness Gauge price  SA40+ which can test thickness covered with coating supplier Portable Ultrasonic Thickness Gauge price  SA40+ which can test thickness covered with coating supplier Portable Ultrasonic Thickness Gauge price  SA40+ which can test thickness covered with coating supplier

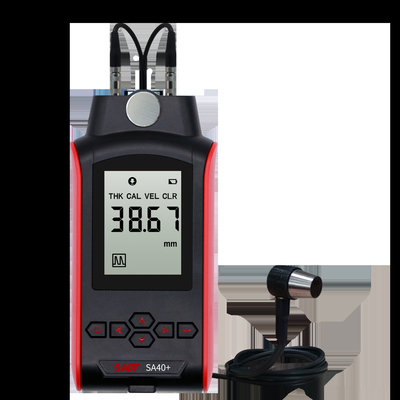

Large Image :  Portable Ultrasonic Thickness Gauge price SA40+ which can test thickness covered with coating

Product Details:

Place of Origin: Beijing
Brand Name: SADT
Certification: CE ISO9001
Model Number: SA40+

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD+200-400+pcs
Packaging Details: Standard package
Delivery Time: Within 3 days after receiving payment
Payment Terms: T/T in advance, Western Union
Supply Ability: 50pcs/week
Contact Now
Detailed Product Description
Accuracy: 0.01 Mm Memory: 400
Key Words: Ultrasonic Thickness Gauge Price Display: 4 Digits LCD
Measuring Range: 0.70~300.0mm In Steel With PT-5 Probe Resolution: 0.01mm@0.70~99.99mm, 0.1mm@100.0~300.0mm
Accuracy: 0.70~9.99mm ±0.05mm / 10.00~99.99mm ±(0.5%+0.01)mm 100.0~300.0 ±(1%+0.1)mm Unit: Mm/inch
Velocity: 1000~9999m/s Memory: 400 Data

Portable Ultrasonic Thickness Gauge price SA40+ which can test thickness covered with coating


Introduction

SA40+ is the miniaturized ultrasonic thickness gauges that can measure wall thickness and velocity.



Using new technique of multiple echo(echo-to-echo), SA40+ can measure wall thickness under paint. For a normal ultrasonic thickness gauge, you must remove paint on work piece, but with new SA40+, you can take measurement directly over the paint of work piece and you can get real thickness value of work piece. SA40+ has two measuring modes: normal mode and multiple echo(MEC) mode. By normal mode, SA40+ is a normal ultrasonic thickness gauge; by MEC mode, SA40+ can measure over coatings.





Specifications



1) Technique: pulse echo with dual probe

2) Display: 4 digits LCD with backlight

3) Measuring range: 0.7 to 300.0mm

4) Resolution : 0.01mm 0.8-99.99mm, 0.1mm 100.0-300.0mm

5) Velocity range: 500-9999m/sec.

6) Display circle: 1 sec.

7) Coupling indication

8) Memory: 400 data can be stored and re-readable

9) Units: mm or inch

10) Low battery indicator on LCD

11) Auto shut-off: after 5 min. of non-use

12) Power: 2 ea. 1.5V AA alkaline cells

13) Operating temperature: 0-40°C

14) Operating humidity: 20-90%RH

15) Size: 124x67x30mm

16) Weight: 240g



Specificaiton:



Model

SA40+

Display 4 digits LCD
Backlight Yes
Measuring range 0.7.00~300.0mm in steel with standard probe (Normal mode)
3.00~20.00mm in steel
Thickness for coating: <1.2mm
(Coating mode)
Resolution 1.00~9.99mm ±0.05
10.00~99.99mm ±(0.5% H+0.01)
100.0~225.0 ±(1% H+0.1)
Unit
mm/inch
Velocity 1000~9999m/s
Coupling indicator Yes
Calibration Auto
Memory
40 data
Low battery indicator Yes
Working environment 0~40oC, 20~90%RH
Power off Auto
Power supply AA battery x 2
Net weight (g) 245
Dimension (mm) 124x67x30
Standard probe PT-5
Optional probes XT-5 / GT-5 / CT2.5



Standard package



SA40+ main unit 1
Standard 5MHz probe PT-5 with
probe holder 1
Built-in calibration block 1
Coupling paste for normal temperature 1
Test certificate 1
Operation manual 1
Carrying case 1


Optional probes for SA40+


XT-5 probe
PT-5 probe with probe holder
