Rebound Concrete Test Hammer HT-225A for Construction Measuirng range 10-70N/mm2

China Rebound Concrete Test Hammer HT-225A for Construction Measuirng range 10-70N/mm2 supplier
Rebound Concrete Test Hammer HT-225A for Construction Measuirng range 10-70N/mm2 supplier Rebound Concrete Test Hammer HT-225A for Construction Measuirng range 10-70N/mm2 supplier Rebound Concrete Test Hammer HT-225A for Construction Measuirng range 10-70N/mm2 supplier Rebound Concrete Test Hammer HT-225A for Construction Measuirng range 10-70N/mm2 supplier Rebound Concrete Test Hammer HT-225A for Construction Measuirng range 10-70N/mm2 supplier Rebound Concrete Test Hammer HT-225A for Construction Measuirng range 10-70N/mm2 supplier

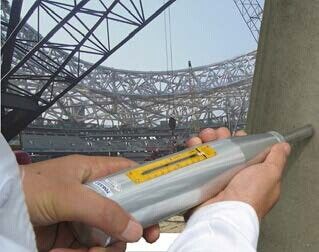

Large Image :  Rebound Concrete Test Hammer HT-225A for Construction Measuirng range 10-70N/mm2

Product Details:

Place of Origin: Beijing
Brand Name: SADT
Certification: CE ISO9001
Model Number: HT-225A

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Price: USD+60-110+Pcs
Packaging Details: Standard package
Delivery Time: Within 3 days after receiving payment
Payment Terms: T/T in advance, Western Union
Supply Ability: 50pcs/week
Contact Now
Detailed Product Description
Measuirng Range: 10-70N/mm2 Key Words: Rebound Concretet Test Hammer
Impact Energy: 0.225kgm (2.207Nm) Maximum Breakdown Friction Of Rider: 0.49-0.78N(50-80g)
Meanvalue Of Steel-anvil Rating Of Hammer: 80±2 Punch Advance For Impac T Hammer: 75mm
Application: For Testing Ordinary Building And Bridge Construction Dimension (mm): φ60x280
Net Weight: 1.0kg Standards: ISO/DIS 8045, EN 12504-2, ENV 206, DIN 1048 Part 2, ASTM C 805, ASTM D 5873, NFP 18-417, B 15-225, JGJ/T 23-2001, JJG 817-1993

Rebound Concrete Test Hammer HT-225A for Construction



Description



HT-225A is used for testing the strength of various concrete members (slab, beam, column, truss) of normal building strength and bridge.

When testing the strength of concrete, the concrete test hammer uses a certain elastic force to transit the impact force of an impact hammer to the surface of concrete, its initial kinetic energy redistributes, a part of energy in the form of plastic deformation or residual deformation is adsorbed by the concrete, and another part of energy which is proportional to the surface hardness is transmitted to the impact hammer, making the hammer resile to a certain height, then the strength of the concrete is derived from the proportional relation between the height of resilience and the concrete strength. With the merits of simple structure, easy correction, maintenance and repair, and portability, the concrete test hammer is widely used in civil engineering and construction industry for testing the strength of concrete. Compared to other nodestructive testers, the concrete test hammer is an economical and practical nondestructive testing instrument. HT-225A is used for testingthe strength of various concrete members (slab, beam, column, truss) of normal building strength and bridge.





Specifications




Model
HT 225A
Nominal kinetic energy
2.207J(0.225kgf.m)
Flip tension spring rigidity
7.84N (0.80kgf)/cm
Punch advance for impact hammer
75mm
Impact surface hardness value between impact hammer and rod
HRC59-63
Maximum breakout friction of pointer system
0.49-0.78N(50-80g)
Mean-value of steel-anvil rating of concrete test hammer
80+/-2
Standards
ISO/DIS 8045, EN 12504-2, ENV 206, DIN 1048 part 2, ASTM C 805, ASTM D 5873, NFP 18-417, B 15-225, JGJ/T 23-2001, JJG 817-1993
Dimension
60x280mm
Net weight
1kg





Standard package - HT-225A
HT225A main unit 1
Grinding wheel 1
Screw driver 1
Spring 1
Operation manual 1
Carrying case 1

_01_02_03_04_05_06_07
