Handheld Rockwell Hardness Tester for Metals / Iron / Steel / Copper / Aluminium

China Handheld Rockwell Hardness Tester for Metals / Iron / Steel / Copper / Aluminium supplier
Handheld Rockwell Hardness Tester for Metals / Iron / Steel / Copper / Aluminium supplier Handheld Rockwell Hardness Tester for Metals / Iron / Steel / Copper / Aluminium supplier

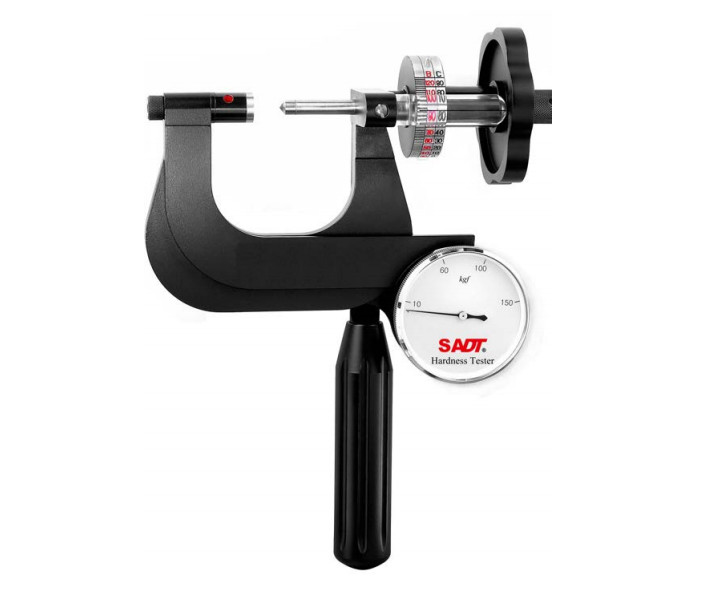

Large Image :  Handheld Rockwell Hardness Tester for Metals / Iron / Steel / Copper / Aluminium

Product Details:

Place of Origin: Beijing
Brand Name: SADT
Certification: ISO9001
Model Number: M1

Payment & Shipping Terms:

Minimum Order Quantity: 1pc
Packaging Details: Standard package
Delivery Time: Within one week after receipt of advanced payment
Payment Terms: T/T in advance
Supply Ability: 50pcs/week
Contact Now
Detailed Product Description
Hardness Gauge: Rockwell-A, B, C, D, E, F, G, H, K Force Applications: Direct Force
Preliminary Test Force: 98.07N (10kg)

Handheld Rockwell Hardness Tester for Metals / Iron / Steel / Copper / Aluminium





This M series portable metal Rockwell/Surface Rockwell hardness gauge is designed based on basic designation of Rockwell hardness test and referring international apparatus,complying with state standard GB/T230.2-2004, international standard ISO6508 and USA standard ASTM E110.


This apparatus features small size, light, easy to operate, portable, accurate measurement and low cost. The weight of this apparatus is reduced to 1~2kg from original 100kg, suitable for usage on hand, at desk or production site; acceptance of work pieces in heat treatment plant, selection of materials in metal materials market, or on trip. Although the size and weight of this apparatus is reduced greatly, it features same accuracy as the desk machine, and the price drops greatly.


This apparatus is classified into Rockwell hardness gauge and surface Rockwell hardness gauge, covering 15 optional scales based on the types and hardness of metal material, available for testing of soft and hard metals, such as metal sheet, tubes, bars, moulds, band and lines, as well as various metal products, mechanical parts, and other applications. The mouth of this apparatus is 1 to 8 inch. All metal materials which can be put into the mouth can be tested.





Key specification:



Hardness gauge:
Rockwell-A, B, C, D, E, F, G, H, K
Surface Rockwell -15N, 30N, 45N, 15T, 30T, 45T


Force applications:
Direct force


Test force:
Rockwell-Preliminary test force 98.07N (10kg), total test force 588.4N (60kg), 980.7N (100kg), 1471N (150kg).

Surface Rockwell-Preliminary test force 29.42N (3kg), total test force 147.1N (15kg), 294.2N (30kg), 411.3N (45kg).


Specimen size:
Min Dia. Of cylindrical specimen φ3mm
Min ID Of cylindrical specimen φ30mm
Min ID Of inner wall of circular tube for test of hardness φ26mm
Min ID Of thin-wall tube specimen φ4.8mm (for Model M1ST)
Min thickness of thin-wall tube specimen 0.15mm (for Model M1ST)
Min thickness of steel plate 0.15mm
Min thickness of soft metal sheet Less than 0.1mm
(to min value in product standard)
Max thickness or Dia. of specimen 1", 2", 4", 8".


Accuracy:
Meet GB/T230.2-2004; ASTM E18; ISO6508-1.





Rockwell Hardness Scale Chart



Hardness
Scale
Penetrators Preliminary Test
Force F0(N)
Main Test Force
F1(N)
Total Test
Force F0+
F1(N)
Measuring
Range

A



B



C



D



E



F



G



H



K

HRA



HRB



HRC



HRD



HRE



HRF



HRG



HRH



HRK

120°Diamond



1.5875mm Steel Ball



120°Diamond



120°Diamond



3.175mm Steel Ball



1.5875mm Steel Ball



1.5875mm Steel Ball



3.175mm Steel Ball



3.175mm Steel Ball

98.07



98.07



98.07



98.07



98.07



98.07



98.07



98.07



98.07

490.3



882.6



1373



882.6



882.6



490.3



1373



490.3



1373

588.4



980.7



1471



980.7



980.7



588.4



1471



588.4



1471

20~88HRA



20~100HRB



20~70HRC



40~77HRD



70~100HRE



60~100HRF



30~94HRG



80~100HRH



40~100HRK



Quote from National standard GB/T230.1-2004 9.8N=1kg
