|Type:||Digital Micro Hardness Tester||Holding Time (s):||5~60|
|Testing Range:||1 HV~2967 HV||Max. Height Of The Specimen:||100mm|
|Max. Width Of The Specimen:||98mm||Dimension (mm):||480 X 305 X 545|
|Net Weight (kg):||30||Warranty:||1 Year|

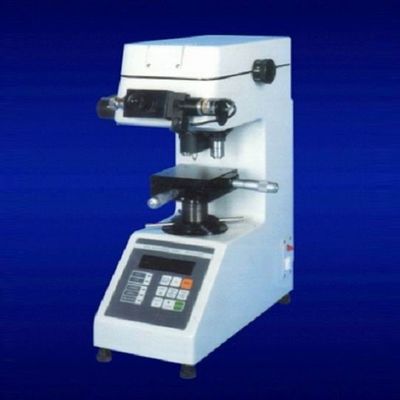

Digital Micro Vickers Hardness Tester Fully Automatic Load Control
HVS-1000 Micro Vickers Hardness Tester made with a unique and precision design in the field of
mechanics,optics and light source,is able to produce a clearer image of indentation and hence a
more precise measurement.
By means of a 10×objective and a 40×objective for measurement,the tester has a wider measurement field and a broader usage range.
It shows measuring method,the testing force value,the indentation length,hardness value,the dwell time of
the testing force ,as well as the number of measurement on it LCD screen.Beside,it has such functions as registering year,month and date,measuring result,treating data,outputting information with its built-in
The tester has a threaded interface that can be linked to the digital camera and CCD pickup camera,and a RS232 interface as well .
The light source of the tester is firstly and uniquely adopted cold light source,and hence its life can reach 100000 hours.The user also can select halogen lamp as light source according to their requirement.
The CCD Automatically Image Measuring Device can be equipped on present tester according to user’s requirement. The LCD Video Measuring Device can be equipped on the present tester according to user’s requirement. According to user’s requirement, the tester also can measure Knoop hardness value after equipping a Knoop indenter.
Specifications & accessories
|Type||Digital micro hardness tester|
|Testing Forces (N)||0.098 / 0.246 / 0.49 / 0.98 / 1.96 / 2.94 / 4.90 / 9.80|
|Testing Forces (gf)||10 / 25 / 50 / 100 / 200 / 300 / 500 / 1000|
|Load control||Automatic loading and releasing|
|Holding Time (s)||5~60|
|Magnification of microscope x||400x for measurement, objective 40x eyepiece 10x
100x for observation, objective 10x eyepiece 10x
|Micrometer resolution (μm)||0.0625|
|Testing range||1 HV~2967 HV|
|Dimension of XY test table||100X100 mm|
|Movement range of XY test table||25X25 mm|
|Max. Height of the specimen||70mm|
|Max. width of the specimen||95mm|
|Output||Built-in printer, RS232 interface|
|Dimension (mm)||425 x 245 x 490|
|Net weight (kg)||35|
|Micro Vickers test block||2|
|Micrometer eyepiece||10x x 1|
|Test table||X-Y stage / fine wire / fork-shaped/
thin specimen, 1 for each type
|Objective||10x x 1, 40x x 1|
|Indenter||Micro Vickers indenter x 1|
|Product operating manual||1|
