Digital LCD Portable Hardness Tester Metal Durometer Hartip2000 With Universal impact direction

Place of Origin Beijing
Brand Name SADT
Certification CE ISO9001
Model Number HARTIP2000
Minimum Order Quantity 1pc
Price USD400-800/Pcs
Packaging Details Standard package
Delivery Time Within 3 days after receiving payment
Payment Terms T/T in advance
Supply Ability 50pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Accuracy ±0.3% @ HL=800, Repeatability: ±2HL Impact Direction Universal Angle (UA) Type
Language English Dimension (mm) 127x66x29
Net Weight (g) 240 Materials 10 Common Metal Materials
Certificate ISO9001 CE SGS Warranty 1 Year
High Light

leeb hardness tester

,

metal hardness tester

Leave a Message
Product Description

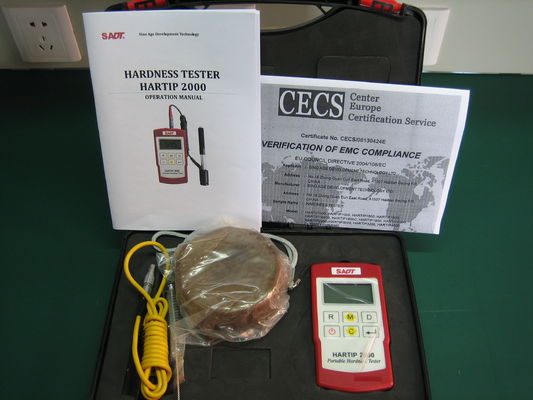

Digital LCD Portable Hardness Tester Metal Durometer Hartip2000 With Universal impact direction


HARTIP 2000 is an innovative portable Leeb hardness tester with our new patent technology. Which make
HARTIP 2000 a universal impact direction hardness tester. It is no need to set up impact direction when taking
measurement by any angle. Therefore, HARTIP 2000 offers a linear accuracy comparing to the angle
compensating method. HARTIP 2000 is also a cost saving hardenss tester and has many other features.

Key Features:


  • Universal impact direction mode, it does not need to setup different impact direction, it will be recognized automatically
  • ›High accuracy: ±2HL(0.3% @HL800)
  • ›Linear accuracy for any angles
  • ›No compensation for impact direction
  • ›Dual values( Leeb value and one conversion value) can be displayed at the same screen
  • ›Big LCD display with backlight
  • ›Ten testing materials including forged steel,
  • ›It has strength conversion value
  • ›300 data for memory
  • ›Customer re-calibration allowed
  • ›Power off automatically
  • ›More economic and more convenient to use


Specifications:



SADT HARTIP 2000/HARTIP2000 D&DL
 Principle  Leeb hardness measurement
 Accuracy  ±0.3% @ HL=800, Repeatability: ±2HL
 Display  Digital LCD with backlight
 Hardness scale  HL/HRC/HRB/HB/HV/HS/σb
 Measuring range  HL100-960 / HRC0.9-83.2 / HRB1-140 / HB1-1878 / HV1-1698 / HS0.5-1370 / σb(rm)1-6599N/mm²
 Probe  DU (External) /DU-DL 2-in-1*
DL, D+15, G, C, E (optional)
 Impact direction  Universal angle (UA) type
 Materials  10 common metal materials
 Memory  300 data can be stored and re-readable
 Statistics  Calculated automatically
 Re-calibration  Allowed by user
 Indicator  Low battery
 Communication interface  Bluetooth (integrated with main unit, made-to-order) to bluetooth micro-printer
 Auto power off  Auto
 Power supply  1.5V AA alkaline battery x 2
Working environment  -10~+45ºC
Dimension (mm)  127x66x29
 Net weight (g)  240
 Standards  Conforming to ASTM A956, DIN 50156, GB/T 17394-1998
 *: DU-DL 2-in-1 probe is only available for HARTIP2000 D&DL.
