Key Words: Portable Hardness Tester Accuracy: +/-4 HLD
Impact Direction: 360 Degree With Auto Impact Direction

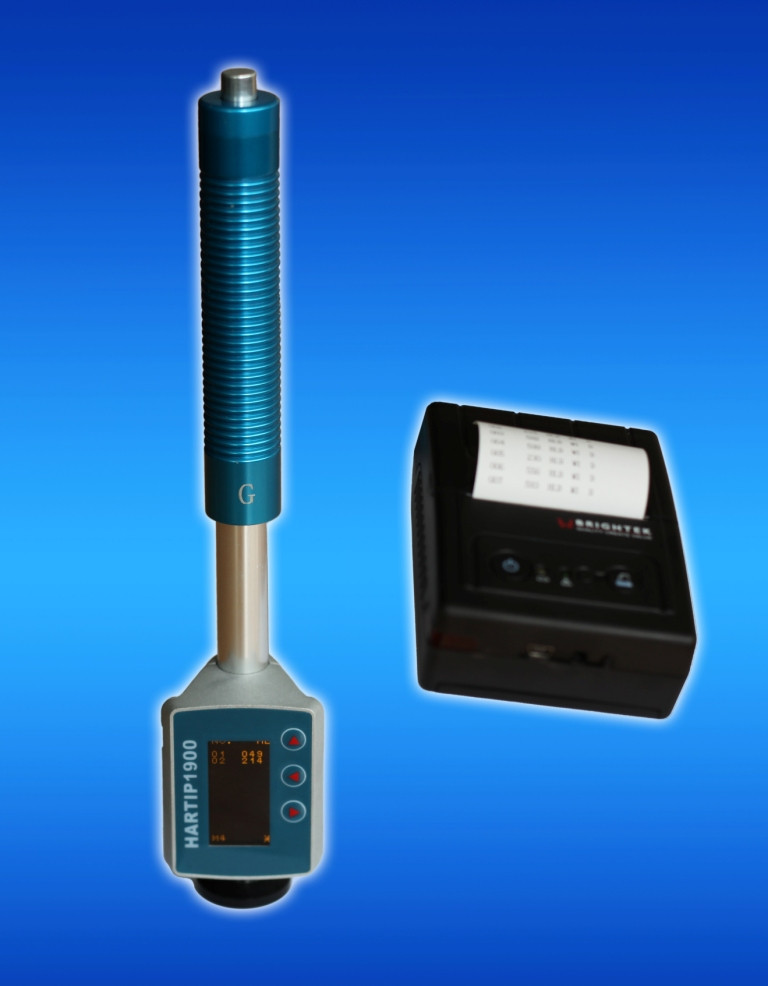

Dual Scale Portable Hardness Tester  HARTIP1900 Handheld Sclerometer For Casting









HARTIP 1900 is a portable integrated Cast steel Leeb hardness tester that is specially designed to measure hardness of castings in HL (Leeb), HRB (Rockwell B), HB(Brinell).

It has more impact energy (90N) and large contact tip (dia.5mm) than normal. Therefore it can make test on machined surface or even roughness surface instead of polished or finished surface.
It is widely used for measuring hardness of large castings or raw materials at spot.

The HARTIP 1900 can make test at any angle without making setup for different impact direction. All readings can be downloaded to computer or printed out to microprinter wirelessly by Bluetooth.


 KEY FEATURES

  •  Rugged and Integrated design in aluminium housing
  •  Universal impact direction
  •  Dual hardness scales on display
  •  Four viewing orientation
  •  Shifting between large view & batch view
  •  Statistics value display automatically
  •  Upper or lower limit reminder
  •  High contrast OLED display
  •  Bluetooth interface for wireless transmission
  •  LI-ion rechargeable battery
  •  Abundant memory



Specifications



Model SADT HARTIP 1900
Principle Leeb hardness measurement
Accuracy ±4HLG
Display High contrast OLED
Hardness scale HL/HRB/HB
Measuring range HLG300-750 / HRB47-100 / HB90-650
Impact device G
Materials Steel/Cast Steel, Lamellar Iron, Nodular Iron, Cast Aluminum
Memory 360000 data in 400 blocks, can be saved and re-readable
Statistics function Average / Max. / Min. / S. value
Re-calibration Allowed by user
Indicator Low battery
Interface USB or Bluetooth
Power on/off Auto
Power supply Rechargeable Li-ion bat ter y charged by USB por t o r c h a rger
Working environment -40ºC~+70ºC
Dimension (mm)
Net weight (g)
Standards Conforming to ASTM A956, DIN 50156, GB/T 17394-1998
