Universal Angle Portable Leeb Hardness Measurement Offering a Linear Accuracy

China Universal Angle Portable Leeb Hardness Measurement Offering a Linear Accuracy supplier
Universal Angle Portable Leeb Hardness Measurement Offering a Linear Accuracy supplier Universal Angle Portable Leeb Hardness Measurement Offering a Linear Accuracy supplier Universal Angle Portable Leeb Hardness Measurement Offering a Linear Accuracy supplier Universal Angle Portable Leeb Hardness Measurement Offering a Linear Accuracy supplier Universal Angle Portable Leeb Hardness Measurement Offering a Linear Accuracy supplier

Large Image :  Universal Angle Portable Leeb Hardness Measurement Offering a Linear Accuracy

Product Details:

Place of Origin: China
Brand Name: SADT
Certification: ce, ISO 9001
Model Number: HARTIP2000

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD200-400/Pcs
Packaging Details: Delivery package: carton
Delivery Time: within 3 workdays after receipt of your advanced payment
Payment Terms: T/T, Western Union
Supply Ability: 500 Piece/Pieces per Month
Contact Now
Detailed Product Description
Principle: Leeb Hardness Measuremen Display: Digital LCD With Backlight
Hardness Scale: HL/HRC/HRB/HB/HV/HS/σb Materials: 10 Common Metal Materials
Color: Red Net Weight (g): 240
Dimension (mm): 127x66x29 Indicator: Low Battery

Universal Angle portable Leeb Hardness Tester for 10 common metal materials HARTIP 2000 Metal Durometer

Details

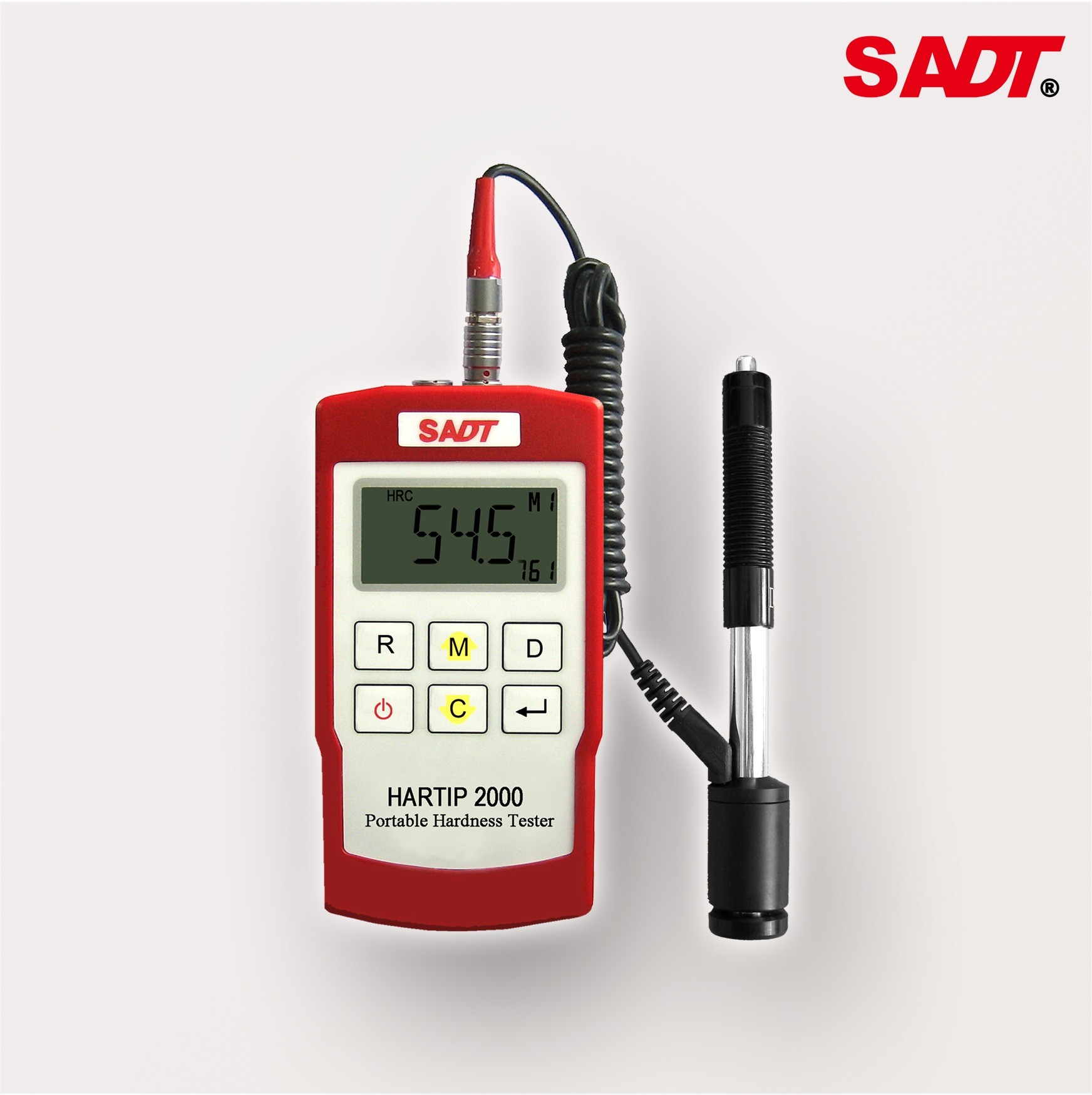

HARTIP2000 is an innovative portable Leeb hardness tester with our new patent technology, which makes HARTIP 2000 a universal angle (UA) impact direction hardness tester.



It is no need to set up impact direction when taking measurement by any angle. Therefore, HARTIP 2000 offers a linear accuracy comparing to the angle compensating method.


HARTIP 2000 is also a cost saving hardness tester and has many other features.



KEY FEATURES



•Universal angle impact direction

•No need to setup impact direction

•No compensation for impact direction

•Linear accuracy for any angles

•High accuracy: +/-2HL( or 0.3% @HL800)



•Big digital LCD display with backlight

•Ten testing materials including forged steel

•It has strength conversion value

•RS232 interface to micro-printer directly

•300 data for memory and re-read

•Customer re-calibration allowed

•Power on/off automatically





Specifications:




SADT HARTIP 2000 hardness tester
Principle Leeb hardness measurement
Accuracy ±0.3% @ HL=800, Repeatability: ±2HL
Display Digital LCD with backlight
Hardness scale HL/HRC/HRB/HB/HV/HS/σb
Measuring range HL170-960/ HRC17-70/ HRB13-109/ HB20-655/ HV80-940
/ HS32-99.5 / σb(rm)255-2639N/mm²
Impact device DU, DL, D+15, G, C (optional)
Impact direction Universal angle (UA) type
Materials 10 common metal materials
Memory 300 data can be stored and re-readable
Statistics Calculated automatically
Re-calibration Allowed by user
Indicator Low battery
Communication
interface
RS232 to micro-printer
Bluetooth (optional) to bluetooth micro-printer
Auto power off Auto
Power supply 1.5V AA alkaline battery x 2
Working environment -10~+45ºC
Dimension (mm) 127x66x29
Net weight (g) 240
Standards Conforming to ASTM A956, DIN 50156, GB/T 17394-1998



Universal Angle Portable Leeb Hardness Measurement Offering a Linear Accuracy





_01_02

Universal Angle Portable Leeb Hardness Measurement Offering a Linear Accuracy

_04_05_06_07_08
