Large Castings Portable Hardness Tester HARTIP1900 Designed Aluminium Housing with G Probe

China Large Castings Portable Hardness Tester HARTIP1900 Designed Aluminium Housing with G Probe supplier
Large Castings Portable Hardness Tester HARTIP1900 Designed Aluminium Housing with G Probe supplier Large Castings Portable Hardness Tester HARTIP1900 Designed Aluminium Housing with G Probe supplier Large Castings Portable Hardness Tester HARTIP1900 Designed Aluminium Housing with G Probe supplier

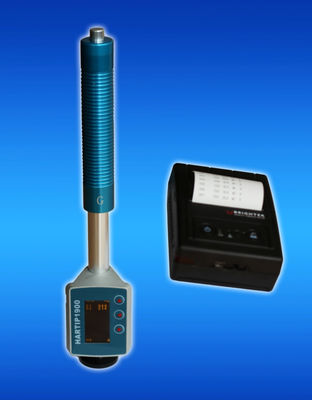

Large Image :  Large Castings Portable Hardness Tester HARTIP1900 Designed Aluminium Housing with G Probe

Product Details:

Place of Origin: China
Brand Name: SADT
Certification: CE, ISO9001
Model Number: HARTIP1900

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: USD900-1600/Pcs
Packaging Details: Delivery package: carton
Delivery Time: within 3 workdays after receipt of your advanced payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500 Piece/Pieces per Month
Contact Now
Detailed Product Description
Principle: Leeb Hardness Measurement Hardness Scale: HL/HRB/HB
Materials: Steel/Cast Steel, Lamellar Iron, Nodular Iron, Cast Aluminum Color: Blue
Net Weight (g): 150 Dimension (mm): 255x37x48
Impact Device: G

Large Castings Hardness Tester Designed Aluminium Housing HARTIP 1900 Metal Durometer

Details


HARTIP 1900 is a portable integrated Leeb hardness tester that is specially designed to measure hardness of castings in HL (Leeb), HRB (Rockwell B), HB (Brinell).

It has more impact energy (90N) and large contact tip (dia.5mm) than normal. Therefore it can make test on machined surface or even roughness surface instead of polished or finished surface. It is widely used for measuring hardness of large castings or raw materials at spot.
The HARTIP 1900 can make test at any angle without making setup for different impact direction. All readings can be downloaded to computer or printed out to microprinter wirelessly by Bluetooth.



KEY FEATURES


•Rugged and Integrated design in aluminium housing
•Universal impact direction
•Dual hardness scales on display
•Four viewing orientation
•Shifting between large view & batch view
•Statistics value display automatically
•Upper or lower limit reminder
•High contrast OLED display
•LI-ion rechargeable battery
•Abundant memory



Specifications:



SADT HARTIP 1900 hardness tester
PrincipleLeeb hardness measurement
Accuracy±4HLG
DisplayHigh contrast OLED
Hardness scaleHL/HRB/HB
Measuring rangeHLG300-750 / HRB47-100/ HB90-650
Impact deviceG
MaterialsSteel/Cast Steel, Lamellar Iron, Nodular Iron, Cast Aluminum
Memory360000 data in 400 blocks, can be saved and re-readable
Statistics functionAverage / Max. / Min. / S. value
Re-calibrationAllowed by user
IndicatorLow battery
Communication
interface
USB or Bluetooth
Auto power offAuto
Power supplyRechargeable Li-ion battery charged by USB port or charger
Working environment-40ºC~+70ºC
Dimension (mm)255x37x48
Net weight (g)150
StandardsConforming to ASTM A956, DIN 50156, GB/T 17394-1998
