Portable integrated metal Hardness Tester Pen Shaped and Easy Operation

Certification
Good quality Hardness Tester for sales
Good quality Hardness Tester for sales
Customer Reviews
Thank you very much for all your help regarding the SADT Concrete Hammer and hardness tester which are working well and we are very pleased with it.

—— Paul Frame

I'm Online Chat Now

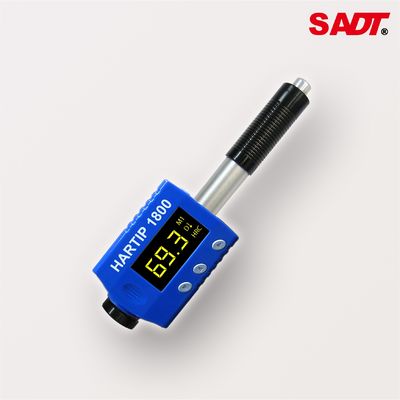

Portable integrated metal Hardness Tester Pen Shaped and Easy Operation

China Portable integrated metal Hardness Tester Pen Shaped and Easy Operation supplier
Portable integrated metal Hardness Tester Pen Shaped and Easy Operation supplier Portable integrated metal Hardness Tester Pen Shaped and Easy Operation supplier Portable integrated metal Hardness Tester Pen Shaped and Easy Operation supplier Portable integrated metal Hardness Tester Pen Shaped and Easy Operation supplier

Large Image :  Portable integrated metal Hardness Tester Pen Shaped and Easy Operation

Product Details:

Place of Origin: China
Brand Name: SADT
Certification: CE, ISO9001
Model Number: HARTIP1800B

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Packaging Details: Delivery package: carton
Delivery Time: within 3 workdays after receipt of your advanced payment
Payment Terms: T/T, Western Union
Supply Ability: 500 Piece/Pieces per Month
Contact Now
Detailed Product Description
Principle: Leeb Hardness Measurement Hardness Scale: HL/HRC/HRB/HB/HV/HS/HRA/σb
Materials: 10 Common Metal Materials Color: Blue/Red
Net Weight (g): 110 Dimension (mm): 148x44x22
Memory: 4 Blocks, 999 Data For Each Block

HARTIP 1800B Metal Leeb hardness measurement Details


This  instrument  is  an  advanced  state-of-the-art  palm  sized  metal  hardness  tester  with many  new  features  which  are  light  weight,  easy  operation,  integrated  design,  high contrast display, low operating temperature, auto compensating for impact direction and etc.  It  can be widely used for  measuring hardness of almost all ferrous and non-ferrous metal materials for scale of Leeb hardness, Rockwell C,  B  &A, Brinell, Vickers, Shore and Strength.



This tester  has a memory capacity of 4000 data.  The measuring value can be printed out to micro-printer by RS232 or Bluetooth. All stored data can be recalled and read on the tester easily.



It  also  has  a  very  unique  feature,  which  impact  device  can  convert  between  D  and  DL simply  by  changing  impact  body.  This  two-in-one  probe  is  equivalent  to  two  individual probes. With this optional accessory, you can take measurement at very narrow surface such as slot bottom, gear tooth that probe D cannot match.





KEY FEATURES



•Integrated design , easy operation

•Universal impact direction, it does not need to setup different impact direction, it will be recognized automatically

•Screen view displays in four different directions, more convenient to view

•Huge memories, data can be recalled easily

•it can connect to computer by USB or wirelessly

•Customer re-calibration allowed

•Statistics value can be calculated automatically

•With strength conversion value





Applications:



  • Hardness  tests  on  installed  machines  or  steel  structures:  e.g.  on  heavy  and  largework-piece or on permanently installed system parts.
  • Rapid  testing  of  multiple  measuring  areas  for  examination  of  hardness  variations  over larger regions.
  • Measuring hardness for produced parts at production line.
  • Identifying metallic material stored in a warehouse.
  • Ineffectiveness analysis of permanent parts, pressure -vessel, turbo generator.







Specifications:




SADT HARTIP 1800B hardness tester
Principle Leeb hardness measurement
Accuracy ±0.3% @ HL=800 / ±2HL
Display High contrast OLED
Hardness scale HL/HRC/HRB/HB/HV/HS/HRA/σb
Measuring range HL170-960 / HRC17-70 / HRB13-109 / HB20-655 / HV80-940 / HS32-99.5 / HRA30-88 / σb(rm)255-2639N/mm²

Impact device D
Materials 10 common metal materials
Memory 4 blocks, 999 data for each block , can be saved
and re-readable
Statistics function Average / Max. / Min. / S. value
Re-calibration Allowed by user
Indicator Low battery
Communication
interface
USB to PC for transferring data or printing, USB
for charging
Auto power off Auto
Power supply 3.7V Li-ion rechargeable battery
Working environment -40ºC~+70ºC
Dimension (mm) 148x44x22
Net weight (g) 110
Standards Conforming to ASTM A956, DIN 50156, GB/T 17394-1998



Portable integrated metal Hardness Tester Pen Shaped and Easy Operation

Portable integrated metal Hardness Tester Pen Shaped and Easy Operation





Company Information



Sino Age Development Technology, Ltd. (SADT), established in 1993, is a leading manufacturer / supplier of measuring andtesting instrument, specialized in NDT and quality control fields.

We have our own HARTIP series portable hardness testerssince 1995.



Now our main products cover portable and bench type hardness tester, ultrasonic thickness gauge, digital concrete hammer, gloss meter, colorimeter, roughness tester, handheld metallurgical microscope, ultrasonic flaw detector and so on.



Our main overseas markets are: USA, Canada, Germany, France, Netherlands, Finland, Italy, Czech Republic, Poland, Lithuania, Estonia, Serbia, Greece, Turkey, Australia, New Zealand, Korea, Taiwan, Singapore, Thailand, Indonesia, Malaysia, Vietnam, India, Pakistan, Iran, UAE, Egypt, South Africa, Mexico and Columbia, Peru and etc.



We are professional producer with ISO 9001 quality system. Most of the products are applied with CE certificate.
