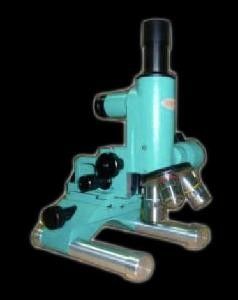

Monocular Portable upright Metallurgical Microscope SM-3 50x - 1000x with LED Lighting

Place of Origin Beijing
Brand Name SADT
Certification ISO9001
Model Number SM-3
Minimum Order Quantity 1pc
Packaging Details Standard package
Delivery Time Within 3 days after receiving payment
Payment Terms T/T in advance
Supply Ability 50pcs/week
Product Details
Usage Metallurgraphic Microscope Magnification 50x-1000x
Observation Method Upright Net Weight 2.7 Kg
Eyepiece(large View) 10x, 20x Objective 5x, 10x, 50x
Adaptor Digital Camera Adaptor With 10x Eyepiece Video Adaptor C-mount 0.5x Warranty 1 Year
High Light

portable metallurgical microscope

,

trinocular metallurgical microscope

Leave a Message
Product Description

Monocular Portable Metallurgical Microscope LED Lighting With 50x - 1000x Microscope





KEY FEATURES

● Special magnetic base, fixing the unit firmly on the workpieces

●Suitable for large-scale roll test and direct observation, no cutting and sampling.

●LED lighting, uniform color temperature, no heating

●Forward/backward and left/right moving mechanism for main machine, convenient for adjustment of the inspection point

●Point connecting of digital cameras, observing the records directly on PC






Observation method Upright
Microscope main 50x-1000x
Eyepiece(large view) 10x, 20x
Objective 5x, 10x, 50x
Adaptor digital camera adaptor with 10x eyepiece
video adaptor C-mount 0.5x
Illuminator(halide) Build-in LED or 6V15W light source
Power supply 230V AC 50/60Hz
Stand On-off magnetic stand
Dimension(mm) 550x260x380
Net weight (kg) 2.7



Standard package:



SM-3 main body 1
Eyepiece: 10x 1
Eyepiece: 20x 1
Objective: 5x 1
Objective: 10x 1
Objective: 50x 1
LED illuminator 1
Power adaptor 1
Magnetic stand 1
Filter(green, sunlight) 1
Adaptor for digital camera 10x 1
C-Mount 0.5x video adaptor 1
Operation manual 1
Carrying case 1
