Handheld Monocular Metallurgical Microscope SM500 100x - 500x with 6V 15W Illuminator and Magnetic Stand

Place of Origin Beijing
Brand Name SADT
Certification CE ISO9001
Model Number SM500
Minimum Order Quantity 1pc
Price USD900-1500/Pcs
Packaging Details Standard package
Delivery Time Within 3 days after receiving payment
Payment Terms T/T in advance
Supply Ability 50pcs/week
Product Details
Magnification 100-500x (extendable 1500x) Illuminator LED
Stand On-off Magnetic Stand Slideway X-direction 15mm Y-direction 12mm
Eyepiece(large View) 10x, 12.5x Objective 10x, 40x
Warranty 1 Year
High Light

portable metallurgical microscope

,

trinocular metallurgical microscope

Leave a Message
Product Description

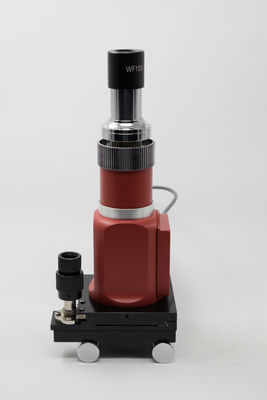

SM500 Handheld Monocular Microscope 100x - 500x 6V 15W Illuminator Magnetic Stand


SM 500 is a self-contained portable metallurgical microscope ideally used for inspecting metallography

of metals in laboratory or in-situ. With fully handheld design and unique magnetic stand, SM 500 can be

attracted directly against the surface of ferrous metal at any angles for non-destructive examination on flatness,curvature as well as other complicated surface.



SM 500 also can be used with digital camera or CCD image process system to download metallurgical image on to PC for data transfer, analysis, storage and printout.




KEY FEATURES:


Handheld design makes inspecting metallograph easy in-situ.
Magnetic stand can be attracted against ferrous metals at any angles.
X, Y slideway move makes inspection friendly
More convenient for photography
Non destructively examination


Specifications:



Microscope main  100-500x (extendable 1500x)
Eyepiece (largeview)  10x, 12.5x (extendable16x)
Objective  10x, 40x (extendable 100x)
Photo Eyepiece  10x
Slideway  X-direction 15mm, Y-direction12mm
Illuminator  LED
Power supply  230Vac 50/60Hz
Stand  On-off magnetic stand
Size  210x160x 95mm
Weight  2.5kg
