High Accuracy CIE Digital Color Difference Meter With Color Analysis Software Micro Printer

  • High Accuracy CIE Digital Color Difference Meter With Color Analysis Software Micro Printer
  • High Accuracy CIE Digital Color Difference Meter With Color Analysis Software Micro Printer
  • High Accuracy CIE Digital Color Difference Meter With Color Analysis Software Micro Printer
Place of Origin Beijing
Brand Name SADT
Certification ＩＳＯ９００１
Model Number SC80
Minimum Order Quantity 1pc
Packaging Details Standard package
Delivery Time Within 3 days after receiving payment
Payment Terms T/T in advance, Western Union, paypal
Supply Ability 50pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Language English Accuracy 0.08
Light Source LED Storage 100 Samples And 100 Data Groups For Each Sample
Weight (g) 550 Dimension (mm) 77x86x210
Measuring Conditions CIE 10° Standard Observer; CIE D65 Light Source Warranty 1 Year
High Light

color testing equipment

,

portable color meter
Leave a Message
Product Description

High Accuracy CIE Digital Color Difference Meter With Color Analysis Software Micro Printer

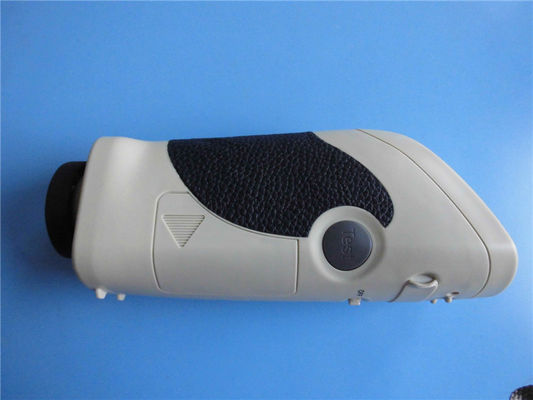

Precise Colorimeter SC80

SC80 of precise colorimeter is mainly applied to plastic, painting, design, plating, costume, printing and dyeing industries. It can do the color analysis and color controlling.



KEY FEATURES

● The 2.4” colorful screen and portable design make you feel comfortable.

● Suitable for internal, external color evaluation and data control.

● High precision measurement, stable performance.

● PC software for data management.

● National measurement accreditation.

● USB data transmit

● Yellow, whiteness measurement



Specifications



Model SC80
Accuracy Standard deviation within ΔE*ab*, 0.08 (average value of 30 times @ the standard white tabula)
Measuring range L*: 1-100
Illuminating system 8/d (8odiffuse illumination), specular component included (SCI)
Light source LED
Measuring conditions CIE 10° standard observer; CIE D65 light source
Measuring time about 0.5 seconds
Rectification White board rectification / Black board rectification
Storage 100 samples and 100 data groups for each sample
Display Colorimetric values: L*a*b*, L*c*h*, ΔE*ab, XYZ, relative RGB values Color difference values: Δ(L*a*b), Δ(L*C*h) Whiteness values: hunter whiteness, ganz whiteness Yellowness value: YI
Communication interface USB2.0, printer(optional)
Aperture(mm) 8
Power supply 4 pcs of AA alkaline batteries / nickel batteries / DC 5V adaptor
Weight(g) 550g
Dimension(mm) 77x86x210

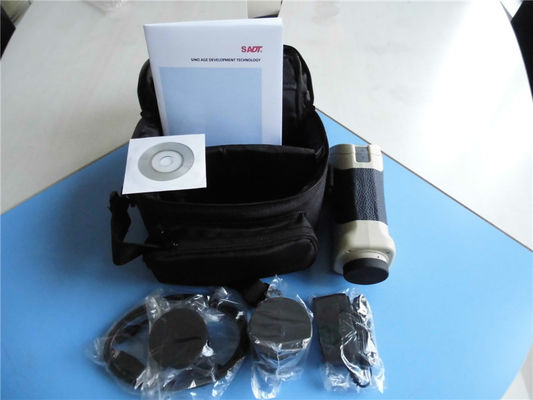

Standard package

SC80 main unit 1

Standard white tabula 1

Standard black cavity 1

USB cable 1

Software CD 1

Power adapter 1

Operation manual 1

Bag 1



Optional accessory

Micro Printer



Standard accessories

Standard white tabula

Standard black cavity

Power adapter USB cable Software CD



Optional accessory

Micro printer

High Accuracy CIE Digital Color Difference Meter With Color Analysis Software Micro Printer 0





_01_02

High Accuracy CIE Digital Color Difference Meter With Color Analysis Software Micro Printer 3

_04_05_06_07_08
