SGS Digital Triangle Car Paint Gloss Meter Reader Ghs

Place of Origin Made in China
Brand Name SADT
Certification ISO9001, CE, SGS
Model Number GHS
Minimum Order Quantity 1pc
Price Negotiation
Packaging Details rigid carrying case
Delivery Time 3 days upon advanced payment
Payment Terms T/T, Western Union, Paypal
Supply Ability 5000 pcs /year
Product Details
Measuring Angle 20° 60°85° Measuring Range 20°:0-1000GU; 60°:0-1000GU; 85°:0-160GU
Measurement Spot (mm) 20°:10x10mm; 60°:9x15mm; 85°:5x36mm Resolution (Gu) 0.1
Repeatability(Gu) ±0.1(0~10); ±0.2(10~100);±0.2%(100~1000) Readout Error(Gu) ±1.5,±1.5%
Measuring Modes Basic Mode Calibration Automatic
Language Chinese & English Storage Basic Mode: 1000
Display 3.5” TFT Size (mm) 160*75*90
Weight 350g Power Supply 3200mAh Li-ion Bat- Tery,>10000 Times (within 8 Hours)
Lnterface USB/RS-232 PC Software Software Can Printing Testing Report And With More Extended Functions
Operation Temperature 0~40°C(32~104°F) Storage Temperature -20~50°C(-4~122°F)
Humidity <85% RH, Without Condensation Standards ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Chromaticity Corresponding Corresponding With CIE 1931(2°) Under CIE C Light Source
High Light

triangle car paint gloss meter

,

SGS car paint gloss meter

,

triangle gloss reader

Leave a Message
Product Description

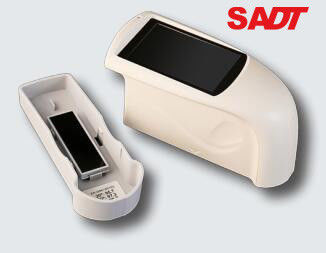

Gloss Meter GHS



GHS gloss meter features with 20, 60 and 85° angle, itis widelyused to test glossiness in these industries, such as automobile,paint, ink, stoving varnish, coating, wood products; marble,granite, vitrified polished tile, pottery brick and porcelain; plas-tic, paper; hardware industries, etc.





KEY FEATURES



  • 20, 60 and 85° in one: from high to low gloss - have the specified angle on hand
  • Concise appearance, feel good
  • Display 5 sets of measurement data, good for comparison
  • Built-in lithium ion rechargeable battery
  • Basic model measurement can meet basic glossiness testing requirements
  • Connect to PC, more extend functions
  • One button for all angles measurement at the same location
  • Comply with international standards
  • Stable performance, easy to read data.

Standard package - GHS



GHS main unit 1
User manualcalibration plate 1
USB cable 1
Power AdapterSoftware 1



Optional accessory


Miniature printer



Specifications





Model GHS
Measuring Angle 20° 60°85°
Measuring Range 20°:0-1000GU; 60°:0-1000GU; 85°:0-160GU
Measurement Spot (mm) 20°:10x10mm; 60°:9x15mm; 85°:5x36mm
Resolution (Gu) 0.1
Repeatability(Gu) ±0.1(0~10); ±0.2(10~100); ±0.2%(100~1000)
Readout Error(Gu) ±1.5,±1.5%
Auto Power-off Time -
Measuring Modes Basic mode
Calibration Automatic
Language Chinese & English
Storage Basic mode: 1000
Display 3.5” TFT
Size (mm) 160*75*90
Weight 350g
Power supply

3200mAh Li-ion Bat-

tery,>10000 times

(within 8 hours)

lnterface USB
PC Software

Software can printing testing report and with

more extended functions

Operation Temperature 0~40°C(32~104°F)
Storage Temperature -20~50°C(-4~122°F)
Humidity <85% RH, without condensation
Standards ISO 2813, GB/T 9754, ASTM D 523, ASTM D 2457
Chromaticity Corresponding Corresponding with CIE 1931(2°) under CIE C light source
