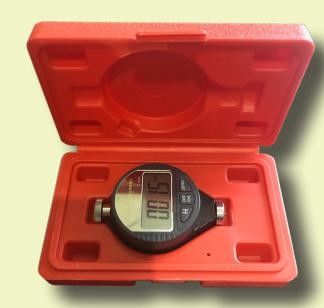

2.5mm Tip Stroke 8.06n Force Digital Durometer Shore A

  • 2.5mm Tip Stroke 8.06n Force Digital Durometer Shore A
  • 2.5mm Tip Stroke 8.06n Force Digital Durometer Shore A
  • 2.5mm Tip Stroke 8.06n Force Digital Durometer Shore A
Place of Origin Made in China
Brand Name SADT
Certification ISO9001, CE, SGS
Model Number Shore A
Minimum Order Quantity 1pc
Price Negotiation
Packaging Details rigid carrying case
Delivery Time 3 days upon advanced payment
Payment Terms T/T, Western Union, Paypal
Supply Ability 5000 pcs /year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Range 0-100HA Resolution (digital) 0.5HA
Accuracy ±1HA Force 0.55-8.06N
Applications General Rubber, Synthetic Rubber,soft Rubber, Poly-resin, Leather, Wax, Etc. Indenter Shape Flat Cone Point 0.79mm 35º Included Angle
Tip Stroke 2.5mm
High Light

8.06n force digital durometer shore a

,

ce digital durometer shore a

,

digital durometer shore a
Leave a Message
Product Description

Digital Rubber Hardness TesterShore A



Shorerubber hardness testeris designed for testing the hardness of soft rubber, printer roller and otherelastomer material.(ASTM--D--2240).
It has advantages of simple structure, convenient use, small body and light weight, intuitive readings. It can carry the hand-held measurements and can also be installed on the same type of fixed cradle which is matched with the set load test.



KEY FEATURES



  • Simple structure
  • Very convenient to use
  • Easy to carry
  • ON/OFF Switch (digital type only)
  • Holding measured display values(digital type only)
  • Zero setting(digital type only)
  • Power Supply: one 1.5 V cell battery(digital type only)

Standard package - ShoreA



Main unit 1

Instructions 1

Carrying case 1





Specifications





Model Shore A
Measuring range 0-100HA
Resolution (digital) 0.5HA
Accuracy ±1HA
Force 0.55-8.06N
Applications

general rubber, synthetic rubber,soft rubber, poly-resin, leather,

wax, etc.
Indenter shape

Flat cone point 0.79mm 35º

Included Angle
Tip stroke 2.5mm



2.5mm Tip Stroke 8.06n Force Digital Durometer Shore A 02.5mm Tip Stroke 8.06n Force Digital Durometer Shore A 12.5mm Tip Stroke 8.06n Force Digital Durometer Shore A 22.5mm Tip Stroke 8.06n Force Digital Durometer Shore A 32.5mm Tip Stroke 8.06n Force Digital Durometer Shore A 42.5mm Tip Stroke 8.06n Force Digital Durometer Shore A 52.5mm Tip Stroke 8.06n Force Digital Durometer Shore A 62.5mm Tip Stroke 8.06n Force Digital Durometer Shore A 7
