HARTIP4100E Iso9001 Ce E Probe Portable Hardness Tester High Accuracy

  • HARTIP4100E Iso9001 Ce E Probe Portable Hardness Tester High Accuracy
Place of Origin Make in China
Brand Name SADT
Certification ISO9001, CE, SGS
Model Number HARTIP4100E
Minimum Order Quantity 1pc
Price Negotiation
Packaging Details rigid carrying case
Delivery Time 3 days upon advanced payment
Payment Terms T/T, Western Union
Supply Ability 5000 pcs/year

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name HARTIP4100E Iso9001 Ce E Probe Portable Hardness Tester High Accuracy Keyword Portable Hardness Tester
Passed ISO9001, CE, SGS Model HARTIP4100E
High Light

E Probe Portable Hardness Tester

,

lcd digital portable hardness tester

,

digital lcd portable hardness testing machine
Leave a Message
Product Description

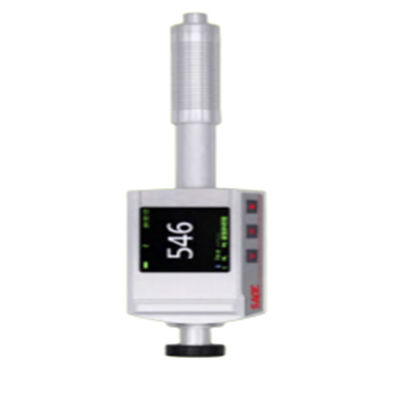

Portable Hardness Tester HARTIP 4100/4100E



Introduction



HARTIP 4100 is an advanced state-of-the-art palm sized metal hardness tester with many new features. It still used our patent technology which makes H4100 to have extraor-dinary accuracy:+/-2 HL (or 0.3% @HL800) with high contrast colour TFT display and durable metal housing. It has a moving bar-graph display which can evaluate the workpiece upon deviation valuI by different colour for easy visual distinguish. HARTIP4100 can down load measuring data to PC and printout to micro-printer by USB port and wirelessly with internal wireless module. The battery can be charged Test block D 1 simply frofunction.

Equipped with impact device E (diamond ball tip), HARTIP4100E is Cleaning brush 1 especially suitable for the hardness material after heat treatment or the situation requiring a large number of tests.



Specifications



       Model                             SADT HARTIP 4100E
Princlple Leeb hardness measurement
Accuracy/Repeatability ±0.3% @ HL=800/±2HL
Display High contrast color TFT320×320
Hardness scale HL/HRC/HRB/HB/HV/HS/HRA/ob
Measuring range

HL100-960/HRC0.6-78/HRB3-140/HB24-1140/

HV24-1360/HS3-120/HRA1-88/ob(rm)24-3800N/mm2
Probe E(diamond bail tip)
Materials and conversion curves 11 common metal materials, 75 curves
Memory 30 files,100 data for each file, can be saved and re-readable
Statistics function Average / Max./Min./S.value
Re-callbration Coincldent/ Independent
Indicator Low battery
Language English, Simplified Chinese, Traditional Chinese, Russian, Korean,French, Italias, German, Turkish, Spanish
Interface USB/Blue tooth to PC for transferring data, wireless printing, USB for charging
Power on/off Auto/Mamual
Power supply 3.7Y Li-ion rechargeable battery
Working environment -20℃-+70℃
Dimension(mm) 156×44×22
Net weight(g) 115
Standards ASTM A956, DIN 50156, EN ISO 16859, GB/T 17394-1998






Advantages



  • Integrated design , easy operation
  • Durable metal housing
  • TFT320X320 colour display
  • Diamond ball tip (only for HARTIP4100E)
  • wide operating environment: -20oC-70oC
  • High accuracy : +/-2 HL (or 0.3% @HL80
  • High accuracy : +/-2 HL (or 0.3% @HL800)
  • Auto compensate error for different impact direction
  • Moving bar-graph display
  • Two evaluation modes : By Limit / Deviation
  • Two calibration modes : Coincident / Inde-pendent
  • Multi-printing mode
  • Four display styles
  • Sound reminder
  • Up to 10 kinds of menu language
  • Date and time function
  • It can connect to computer by USB or Bluetooth
  • USB and Bluetooth interface, it can connect micro-printer wirelessly
  • 3.7 V Li-ion rechargeable battery, it can be charged by USB or power source
  • Statistics value can be calculated automatically
  • With strength conversion value
  • Power on/off automatically or manually



Standard package



  • HARTIP 4100 main unit     1
  • Internal probe D        1
  • Internal probe E(only for 4100E)        1
  • Test block D        1
  • Small support ring      1
  • Cleaning brush    1
  • 3.7 V Li-ion rechargeable bat- tery (internal)      1
  • Bluetooth module(internal)      1
  • Charger      1
  • USB cable     1
  • Data managing software       1
  • Operation manual         1
  • Test Certificate        1
  • Carrying case       1
