Usb Cable Or Bluetooth Concrete Rebound Hammer Data Transferred To Pc

Introduction

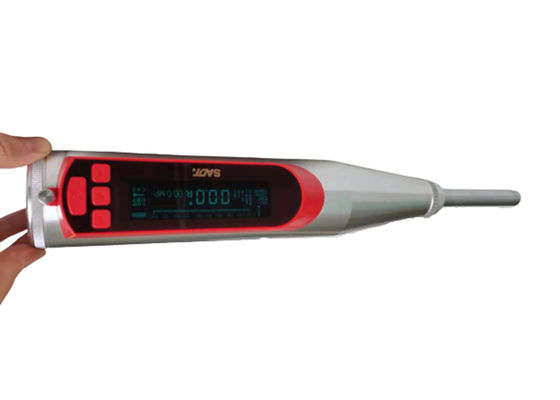

HT-225DS is an innovation based on the HT-225D, which digital part (data processor) can be separated from main body on site and coupled with mechanical hammer easily by a simple push. So once the mechanical hammer brokes during testing, you can easily exchange another mechanical hammer and continue to work. Its mechanical hammer can work as normal analog test hammer without digital part. HT-225DS means more convenient, more cost saving and more flexible. HT-225DS has Bluetooth and data in memory can be downloaded to PC or micro printer wirelessly by Bluetooth or USB port by cable.

Key feature

High contrast OLED display
All setup can be made on site
Automatic calculating compressive strength
Automatic correc tion of impac t direc tion
All data will be stored in memor y
All data can be transferred to PC by USB cable or Bluetooth
Dual display for analogue ruler and digital value
Digital/Mechanical 2-in-1

Specification


Appliance Indexes

Display screen: high-light blue OLED display screen
Resolution: 256X64
Mass Memory: 1000 parts, 256 data for each part
Maximum number of testing zones: 16
Maximum number of test points in a testing zone: 16 times
National unified curve: 1
Customized curve: 2
Battery: can charge high-capacity Li-ion battery
Data interface: Mini-USB interface
Types of sensor: non-contact optical coupler type sensor
Strength unit: Mp, N/mm2, Kgf/ mm2
Communication mode: serial port communication, wireless communication (optional
