Payment & Shipping Terms:
|Accuracy:||0.08||Inspection Angle:||10 Degree Angle Of View In CIE|
|Aperture (mm):||Ø8||Weight (g):||550|
|Dimension (mm):||77x86x210||Light Source:||LED|
|Illuminating System:||8/d, Specular Component Included (SCI)||Rectification:||White Board Rectification/Black Board Rectification|
color difference meter,
portable color meter

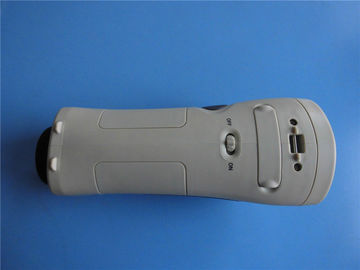

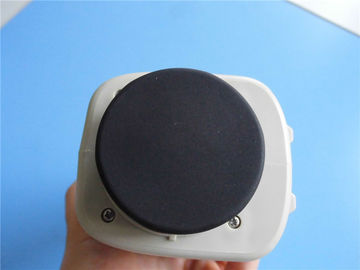

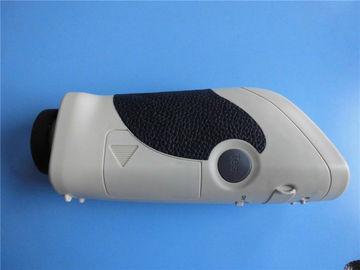

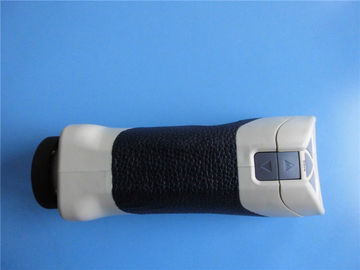

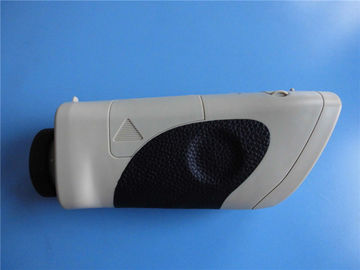

White Light Source SC80 Color Difference Meter 0.08 Accuracy L*a*b Display
SC80 precise colorimeter is mainly applied to plastic,painting, design, plating, costume, printing and dyeing industries. It can do the color analysis and color controlling.
The 2.4” colorful screen and portable design make you feel comfortable.
Suitable for internal, external color evaluation and data control.
THigh precision measurement, stable performance.
PC software for data management.
National measurement accreditation.
USB data transmit
Yellow, whiteness measurement
|Accuracy||Standard deviation within ΔE*ab*, 0.08 (average value of 30 times @ the standard white tabula)|
|Measuring range||L*: 1-100|
|Illuminating system|| 8/d (8°diffuse illumination),
specular component included (SCI)
|Inspection angle||10° angle of view in CIE|
|Measuring conditions||CIE 10° standard observer; CIE D65 light source|
|Measuring time||about 0.5 seconds|
|Rectification||White board rectification/Black board rectification|
|Storage||100 samples and 100 data groups for each sample|
|Display|| Colorimetric values: L*a*b*, L*c*h*, ΔE*ab, XYZ, relative RGB values
Color difference values: Δ(L*a*b), Δ(L*C*h)
Whiteness values: hunter whiteness, ganz whiteness Yellowness value: YI
|Communication interface||USB2.0, printer(optional)|
|Power supply||4 pcs of AA alkaline batteries or nickel batteries special adaptor (DC, 5V)|
Sino Age Development Technology, Ltd. (SADT), established in 1993, is a leading manufacturer / supplier of measuring andtesting instrument, specialized in NDT and quality control fields.
We have our own HARTIP series portable hardness testerssince 1995.
Now our main products cover portable and bench type hardness tester, ultrasonic thickness gauge, digital concrete hammer, gloss meter, colorimeter, roughness tester, handheld metallurgical microscope, ultrasonic flaw detector and so on.
Our main overseas markets are: USA, Canada, Germany, France, Netherlands, Finland, Italy, Czech Republic, Poland, Lithuania, Estonia, Serbia, Greece, Turkey, Australia, New Zealand, Korea, Taiwan, Singapore, Thailand, Indonesia, Malaysia, Vietnam, India, Pakistan, Iran, UAE, Egypt, South Africa, Mexico and Columbia, Peru and etc.
We are professional producer with ISO 9001 quality system. Most of the products are applied with CE certificate.
Contact Person: wang
Illumination / observa-tion system: d/8(Diffused lighting, 8 degrees observe angle), SCI(specular reflection included)/SCE(specularreflection excluded)simultaneous measurement, (conforms to CIE No.15, ISO 7724/1, ASTM E1164, DIN 5033 Teil7, JIS Z8722 Condition c standards)
Illumination Lightsource: CLEDs(entire wavelength balanced LED light source
Sphere Size: Φ40mm, diffused reflection surface coating
Sensor: dual light path sensor array
