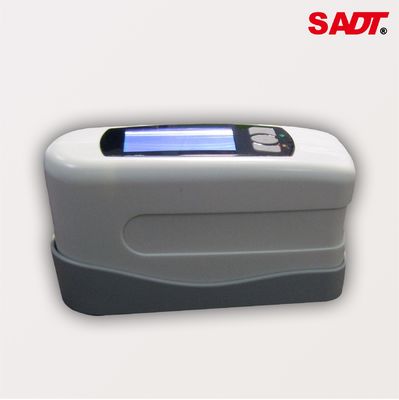

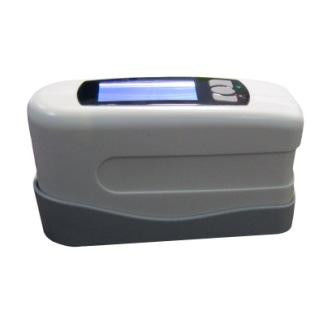

SADT 60-angle Digtial Gloss Meter GM60 With Large memory , USB interface and 9x15 measuring spot

  • SADT 60-angle Digtial Gloss Meter GM60 With Large memory , USB interface and 9x15 measuring spot
  • SADT 60-angle Digtial Gloss Meter GM60 With Large memory , USB interface and 9x15 measuring spot
  • SADT 60-angle Digtial Gloss Meter GM60 With Large memory , USB interface and 9x15 measuring spot
Place of Origin Beijing
Brand Name SADT
Certification ＣＥ　ＩＳＯ９００１
Model Number GM60
Minimum Order Quantity 1pc
Price USD800-1200/Pcs
Packaging Details Standard package
Delivery Time Within 3 days after receiving payment
Payment Terms T/T in advance
Supply Ability 50pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Measuring Range(Gu) 0~120, 120~1000 Measurement Spot (mm) 9×15
Readout Error(Gu) ±1.5 (0~120) ±1.5%(120~1000) Dimension (mm) 164×58×88
Net Weight(g) 520 Application Painting, Printing, Floor Material, Plastic, Ceramics, L Eather, Hardware, Plating
Warranty 1 Year Certification ISO9001/SGS/CE
Highlight

sheen gloss meter

,

portable gloss meter
Leave a Message
Product Description

Large memory GM60  Gloss Meter Three-angle With internal Bluetooth, USB interface


GM Series gloss meters are designed and manufactured according to internation standards ISO2813,

ISO7668, ASTM D523, ASTM D2457 and China standards GB/T9754, GB/T13891, GB/T7706 and GB/ T8807.

The technical parameters is up to JJG696-2002. GM Series gloss meters can be widely used to measure

painting, coating, plastic, ceramics, leather products, paper, printing, floor materials and so on.





KEY FEATURES


Precision appearance design, more suitable for human characteristic, easy to use.
Large memory for measurement data.
Latest Bluetooth function and removable memory card to transmit data conveniently.
Speical designed gloss software to analysis data and output.
Prompt for low battery and full memory.





Main Applications



Decorative materials, such as marble, granite, polishing brick, ceramic,mould and so on.


All kinds of coating and surfaces, such as paints, varnishes, printing ink, automaker, leather craft. The other kinds of materials and objects, such as, woodenware, plastic, paper, etc.





Specifications



Application Painting, printing, floor material, plastic, ceramics, leather, hardware, plating
Measuring Range(Gu)
0~120, 120~1000 @ 60°
Readout Error(Gu) ±1.5 (0~120)
±1.5%(120~1000)
Repeatability ±0.5 (0~120)
±0.5%(120~1000)
Aperture (mm)  60°
Measurement Spot (mm)
9×15
Memory 900 data or 30 groups, CF card (optional)
Interface USB / printer /Bluetooth (Bluetooth is only avalaible for GMS)
Software Data managing software
Power Supply +5V, AA*4
Working Environment 10~40ºC, <85%RH,
Dimension (mm) 164×58×88
Net Weight(g) 520
Standards ISO2813, ISO7668, ASTMD 523, ASTM D2457, GB/T9754, GB/T13891, GB/T7706, GB/T8807
