High Stability GTS Small and Light Gloss Meter for Car, Electronic, Decoration, Casing

Place of Origin Beijing
Brand Name SADT
Certification ISO9001
Model Number GTS
Minimum Order Quantity 1pc
Price USD300-600/Pcs
Packaging Details Standard package
Delivery Time Within 3 days after receiving payment
Payment Terms T/T in advance, Western Union
Supply Ability 50pcs/week
Product Details
Readout Error(Gu) ±1.2 Repeatability ±0.4
Key Words Gloss Meter Measuring Range(Gu) 20°: 0~200 60°: 0~1000 85°: 0~160
Warranty 1 Year Certificate ISO9001 SGS CE
High Light

portable gloss meter

,

elcometer gloss meter

Leave a Message
Product Description

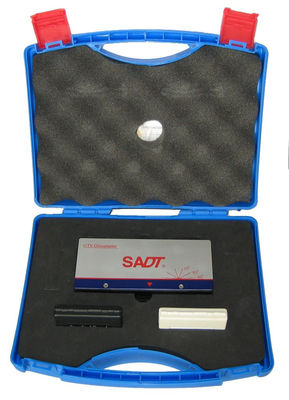

High Stability GTS Small and Light Gloss Meter for Car, Electronic, Decoration, Casing with 20º60ºand 85º



The serial of GT glossmeters are designed and manufactured according to international standard ISO2813,

ASTMD523, DIN67530 and China standard GB9754, GB9966, GB/T3891. The technical parameters up to JJG696-2002.

Details:
Applications:
1. Measurement of Paint and Dope surface gloss on Car, Electronic appliance and Musical
instrument industry.
2. Measurement of floor board, marble, granite and ceramic tile gloss on architecture, decoration industry.
3. Measurement of printing ink and paper on Printing and Casing industry.
4. Measurement of the others need to be measured.
5. Hard drawn aluminum alloys

Features:
1. Small and light, real easy to be carried and used.
2. One 1.5 mignon alkaline Battery can be used for almost 60 hours and 10000 reading.
3. High stability
4. Long-term stable light source needs no replacing for ever.
5. Ouartz crystal standard board, no excursion.

Specifications:



Model GTS
Application Paint, coating, printing, ceramics , metal
Measuring Range(Gu) 20°: 0~200
60°: 0~1000
85°: 0~160
Readout Error(Gu) ±1.2
Repeatability ±0.4
Aperture (mm) 20°, 60°, 85°
Measurement Spot (mm) 10×10 @ 20°
10×20 @ 60°
8×30 @ 85°
Window Size (mm) 11×52
Power Supply 1.5V AA
Dimension (mm) 143×32×64
Net Weight(g) 390
Standards ISO2813, ASTM D523, DIN-67530, GB/T9754, GB/T7706, GB/T9966.6
