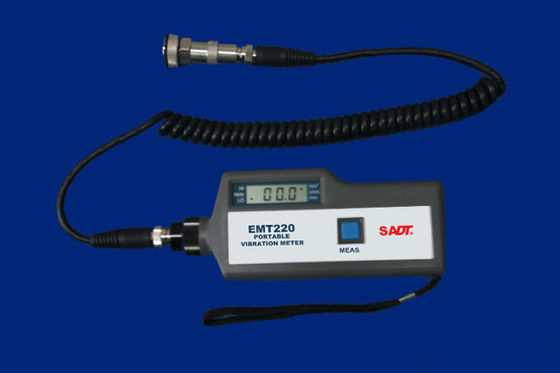

EMT220 Portable Vibration Meter external probe,without temperature-measuring function

Place of Origin Beijing
Brand Name SADT
Certification CE ISO9001
Model Number EMT220
Minimum Order Quantity 1pc
Price USD500-1000/Pcs
Packaging Details Standard package
Delivery Time With 3 days after receiving payment
Payment Terms T/T
Supply Ability 50pcs/week
Product Details
Displacement 0.001~1.999 Mm (peak To Peak) Temperature Measurement Scale -20~400°C
Vibration Measurement ±5% Measurement Value; ±2 Digits Temperature Measurement ±1% Measurement Value; ±1 Digit
Dimension 185mm×68mm×30mm Net Weight 200g
Warranty 1 Year Velocity 0.01~19.99 Cm/s (r.m.s. Value)
High Light

vibration measurement equipment

,

vibration monitoring equipment

Leave a Message
Product Description

EMT220 Portable Vibration Meter  0.01~19.99 cm/s Type K Thermoelectro Couple Transducer





Vibration transducer:
Annular shear type acceleration transducer (only for integral type)Separate, built-in electric charge amplifier,

shear type acceleration transducer (only for separate type)

Temperature transducer:
Type K thermoelectro couple transducer (only for EMT220 with temperature measuring function)

Detector:
Root Mean Square
Vibration measurement scale:
Displacement: 0.001~1.999 mm (peak to peak)
Velocity: 0.01~19.99 cm/s (r.m.s. value)
Acceleration: 0.1~199.9 m/s2 (peak value)
Vibration acceleration: ≤ 199.9 m/s2 (peak value)

Temperature measurement scale:
-20 ~400 ℃(only for EMT220 with temperature-measuring
function)

Accuracy:
Vibration measurement: ±5%Measurement value; ±2 Digits
Temperature measurement: ±1% Measurement value; ±1 Digit

Vibration Frequency Range:
10 ~1 kHz (Normal type)
5 ~1 kHz (Low frequency type)
1 ~15 kHz (only at “HI” position for acceleration)

Display: Digits liquid crystal display
Sample period:1 second

Vibration measurement value readout:
Displacement: Peak to peak value (r.m.s.×2√2)
Velocity: Root mean square (r.m.s.)
Acceleration: Peak value (r.m.s.x√2)

Readout-keeping function:
Readout of vibration / temperature value can be remembered after
releasing the Measure Key (Vibration / Temperature Switch)

Output Signal:
2V AC (peak value) (load resistance above 10 kΩ at full measuring scale)

Power supply:
6F22 9V laminated cell

Power on / off:
Battery life about 30 hours for continuous use
Power up when pressing Measure Key (Vibration / Temperature Switch)
Power automatically shut off after releasing the Measure Key for one minute

Operating condition:
Temperature: 0 ~50 ℃
Humidity: ≤ 90% RH

Volume:
185 mm×68 mm×30 mm

Weight:200g



Vibration transducer:
Annular shear type acceleration transducer (only for integral type)Separate, built-in electric charge amplifier, shear type acceleration transducer (only for separate type)

Temperature transducer:
Type K thermoelectro couple transducer (only for EMT220 with temperature measuring function)

Detector:
Root Mean Square


Vibration measurement scale:
Displacement: 0.001~1.999 mm (peak to peak)
Velocity: 0.01~19.99 cm/s (r.m.s. value)
Acceleration: 0.1~199.9 m/s2 (peak value)
Vibration acceleration: ≤ 199.9 m/s2 (peak value)

Temperature measurement scale:
-20 ~400 ℃(only for EMT220 with temperature-measuring function)

Accuracy:
Vibration measurement: ±5%Measurement value; ±2 Digits
Temperature measurement: ±1% Measurement value; ±1 Digit

Vibration Frequency Range:
10 ~1 kHz (Normal type)
5 ~1 kHz (Low frequency type)
1 ~15 kHz (only at “HI” position for acceleration)

Display: Digits liquid crystal display
Sample period:1 second

Vibration measurement value readout:
Displacement: Peak to peak value (r.m.s.×2√2)
Velocity: Root mean square (r.m.s.)
Acceleration: Peak value (r.m.s.x√2)

Readout-keeping function:
Readout of vibration / temperature value can be remembered after
releasing the Measure Key (Vibration / Temperature Switch)

Output Signal:
2V AC (peak value) (load resistance above 10 kΩ at full measuring scale)

Power supply:
6F22 9V laminated cell



Power on / off:
Battery life about 30 hours for continuous use
Power up when pressing Measure Key (Vibration / Temperature Switch)
Power automatically shut off after releasing the Measure Key for one minute

Operating condition:
Temperature: 0 ~50 ℃
Humidity: ≤ 90% RH

Volume:
185 mm×68 mm×30 mm

Weight:200g

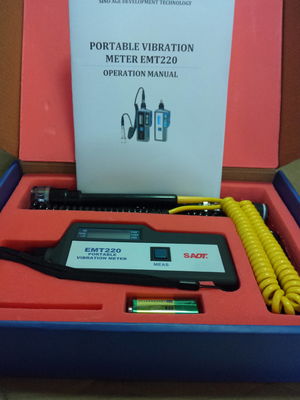

Standard Package - EMT220
EMT220 main unit 1
Short feeler lever (only for integrated type) 1
Acceleration transducer (only for separate type) 1
Transducer connection cable (only for separate type) 1

Thermo electro couple transducer (only for EMT220 with

temperature measuring function)

1
6F22 cell 1
Operation manual 1
Carrying case 1
