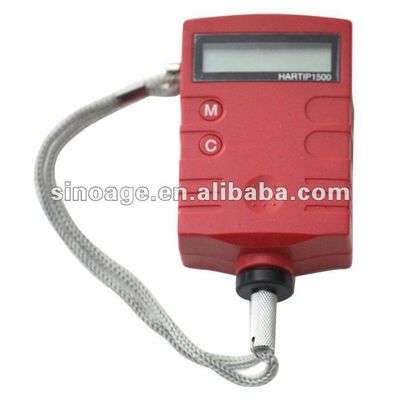

Red Digital Portable Leeb metal Hardness Tester Hartip1500 in palm size
| Place of Origin | Beijing |
|---|---|
| Brand Name | SADT |
| Certification | ＣＥ/ＩＳＯ９００１ |
| Model Number | HARTIP1500 |
| Minimum Order Quantity | 1pc |
| Price | USD100-300/Pcs |
| Packaging Details | Standard package |
| Delivery Time | Within 3 days after receiving payment |
| Payment Terms | T/T in advance |
| Supply Ability | 50pcs/week |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Language | English | Hardness Scale | HL/HRC/HRB/HB/HV/HS |
|---|---|---|---|
| Accuracy | ±0.4% @ HL=800 / ±3HL | Principle | Leeb Hardness Measurement |
| Warranty | 1 Year | Power Supply | 9V Alkaline Battery X 1 |
| Dimension (mm) | 100x60x33 | Standards | Conforming To ASTM A956, DIN 50156, GB/T 17394-1998 |
| Highlight | metal hardness tester,integrated hardness tester |
||
Product Description
Digital ASTM A956 Portable Hardness Tester Hartip1500 for Rockwell / Brinell Measuring
HARTIP 1500 is an integrated handheld metal hardness tester that combines impact device (probe) and
processor into one unit. The size is much shorter than normal impact device, which lets HARTIP 1500
can meet not only normal measurements, but can take measurements at narrowed space as well. HARTIP
1500 is suitable for testing hardness of almost all Ferrous and Non-Ferrous materials. It can be used for
industrial of power plant, petrochemical field, vehicle machine, air space, machine and so on.
KEY FEATURES
·Rugged and modular design
·Palm sized for narrow space
·High accuracy
·Built-in impact device
·For all metallicmaterials
·Wide measuring range: Rockwell B&C, Brinell, Vickers, Shore and HL
·Test in any directions
·Automatic power on/off
·Recalibration allowed
·Comply to standard ASTM A956, DIN 50156, GB/T17394-1998
Specifications:
| Principle | Leeb hardness measurement |
| Accuracy | ±0.4% @ HL=800 / ±3HL |
| Display | LCD with backlight |
| Hardness scale | HL/HRC/HRB/HB/HV/HS |
| Measuring range | HL100-960 / HRC0.9-78.7 / HRB1.2-140 / HB15-1878 / HV11-1698 / HS2-128 |
| Probe | D (Internal) |
| Materials | 9 common metal materials |
| Memory | 99 data |
| Statistics function | Average / Max. / Min. |
| Re-calibration | Allowed by user |
| Indicator | Low battery |
| Auto power off | Auto |
| Power supply | 9V alkaline battery x 1 |
| Working environment | -10~+45ºC |
| Dimension (mm) | 100x60x33 |
| Net weight (g) | 160 |
| Standards | Conforming to ASTM A956, DIN 50156, GB/T 17394-1998 |
Standard package
HARTIP 1500 main unit 1
Built in probe D 1
Test block D 1
Cleaning brush 1
Charger 1
Operation manual 1
Test Certificate 1
Carrying case 1
Optional accessories
Special support rings
Standard big support ring for
probe D
Standard small support ring for
probe D
Impact body D
Test block D with certificate
Leather pouch
