Accurate Portable Hardness Tester , Integrated Two-In-One Impact Device

Place of Origin Beijing
Brand Name SADT
Certification CE ISO9001
Model Number HARTIP1800B D/DL
Minimum Order Quantity 1pc
Price USD400-1000/Pcs
Packaging Details Standard package
Delivery Time Within 3 days after receiving payment
Payment Terms T/T in advance
Supply Ability 50pcs/week
Product Details
Accuracy ±0.3% @ HL=800 / ±2HL Language 10 Languages
Materials And Conversion Curves 10 Common Metal Materials, 30 Curves Statistics Function Average / Max. / Min. / S. Value
Dimension (mm) 148x44x22 Net Weight (g) 110
Warranty 1 Year Certification ISO9001 SGS CE
High Light

leeb hardness tester

,

metal hardness tester

Leave a Message
Product Description

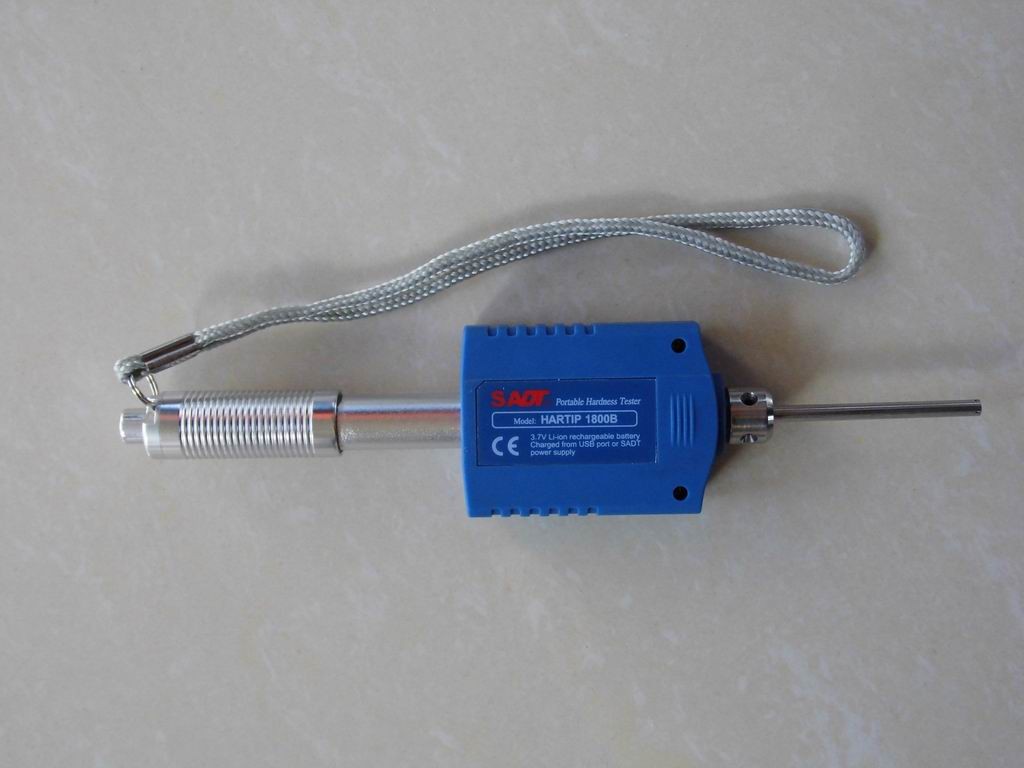

Accurate Portable Hardness Tester , Integrated Two-In-One Impact Device



Hartip 1800B D/DL is a addvanced model for Hartip1800B. With most of core functions of hartip1800 D/ DL and lower price , HARTIP1800B D/DL is a good choice for the customer who has the limited budget. Hartip1800B D/DL also can be equipped with our unique D&DL two-in-one impact device.




KEY FEATURES


Integrated design , easy operation
Universal impact direction, it does not need to setup different impact direction, it will be recognized automatically
Digital with high contrast OLED display
Wide operating environment: -40°C-70°C

High accuracy: +/-2 HL (or 0.3% @HL800)
Four display modes: single value shown in big letter or multi-values shown in batch

It can connect to computer by USB

RS232 and wireless interface, it can connect micro-printer wirelessly (wireless connection is an option)

Customer re-calibration allowed

3.7 V Li-ion rechargeable battery , it can be charged by USB or power source

With strength conversion value

Power on/off automatically or manually




Specifications:



Model SADT HARTIP 1800B /1800B D&DL
Principle Leeb hardness measurement
Accuracy / Repeatability ±0.3% @ HL=800 / ±2HL
Display High contrast OLED
Hardness scale HL/HRC/HRB/HB/HV/HS/HRA/σb
Measuring range HL100-960 / HRC0.9-79.2 / HRB1.2-140 / HB1-1878 / HV1-1698 / HS0.5-128 / HRA7-88.5 / σb(rm)24-6599N/mm²
Probe D/ D-DL 2-in-1 (internal)*
Materials and conversion curves 10 common metal materials, 30 curves
Memory 30 / 60 files on request, 100 data for each file, can be saved and re-readable
Statistics function Average / Max. / Min. / S. value
Re-calibration Allowed by user
Indicator Low battery
Language English, Simplified Chinese, Traditional Chinese, Russian, Korean, French, Italian, German, Turkish,Spanish
Interface USB to PC for transferring data, USB for charging
Power on/off Auto / Manual
Power supply 3.7V Li-ion rechargeable battery
Working environment -40ºC~+70ºC
Dimension (mm) 148x44x22
Net weight (g) 110
Standards Conforming to ASTM A956, DIN 50156, GB/T 17394-1998
*: D-DL 2-in-1 probe is only available for DL models.



Applications


 Hardness tests on installed machines or steel structures: e.g. on heavy and large work-piece or on permanently installed system parts.
 Rapid testing of multiple measuring areas for examination of hardness variations over larger regions.
 Measuring hardness for produced parts at production line.
 Identifying metallic material stored in a warehouse.
 Ineffectiveness analysis of permanent parts, pressure -vessel, turbo generator.
