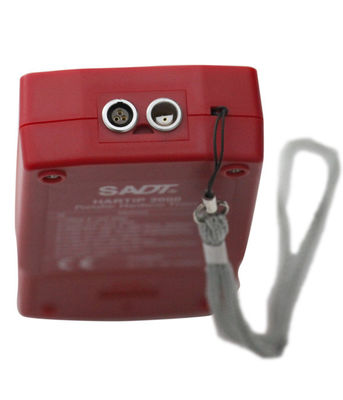

Digital LCD Display Portable Metal Hardness Tester Hartip2000 With Universal Angle And High Accuracy

  • Digital LCD Display Portable Metal Hardness Tester Hartip2000 With Universal Angle And High Accuracy
  • Digital LCD Display Portable Metal Hardness Tester Hartip2000 With Universal Angle And High Accuracy
  • Digital LCD Display Portable Metal Hardness Tester Hartip2000 With Universal Angle And High Accuracy
  • Digital LCD Display Portable Metal Hardness Tester Hartip2000 With Universal Angle And High Accuracy
  • Digital LCD Display Portable Metal Hardness Tester Hartip2000 With Universal Angle And High Accuracy
Place of Origin Beijing
Brand Name SADT
Certification ＣＥ　ＩＳＯ９００１
Model Number HARTIP2000
Minimum Order Quantity 1pc
Packaging Details Standard package
Delivery Time Within 3 days after receiving payment
Payment Terms T/T in advance
Supply Ability 50pcs/week
Product Details
Language English Accuracy ±0.3% @ HL=800, Repeatability: ±2HL
Probe DU Net Weight (g) 240
Dimension (mm) 127x66x29 Color Red
Warranty 1 Year Certificate ISO9001 SGS CE
High Light

durable hardness tester

,

hartip 2000 portable metal hardness tester

,

display lcd portable metal hardness tester
Leave a Message
Product Description

Digital LCD Portable Hardness Tester Metal Durometer Hartip2000 With Universal Angle


HARTIP 2000 is an innovative portable Leeb hardness tester with our new patent technology. Which make
HARTIP 2000 a universal impact direction hardness tester. It is no need to set up impact direction when taking
measurement by any angle. Therefore, HARTIP 2000 offers a linear accuracy comparing to the angle
compensating method. HARTIP 2000 is also a cost saving hardenss tester and has many other features.

Key Features:


  • Universal impact direction mode, it does not need to setup different impact direction, it will be recognized automatically
  • ›High accuracy: ±2HL(0.3% @HL800)
  • ›Linear accuracy for any angles
  • ›No compensation for impact direction
  • ›Dual values( Leeb value and one conversion value) can be displayed at the same screen
  • ›Big LCD display with backlight
  • ›Ten testing materials including forged steel,
  • ›It has strength conversion value
  • ›300 data for memory
  • ›Customer re-calibration allowed
  • ›Power off automatically
  • ›More economic and more convenient to use


Specifications:



SADT HARTIP 2000/HARTIP2000 D&DL
Principle Leeb hardness measurement
Accuracy ±0.3% @ HL=800, Repeatability: ±2HL
Display Digital LCD with backlight
Hardness scale HL/HRC/HRB/HB/HV/HS/σb
Measuring range HL100-960 / HRC0.9-83.2 / HRB1-140 / HB1-1878 / HV1-1698 / HS0.5-1370 / σb(rm)1-6599N/mm²
Probe DU (External) /DU-DL 2-in-1*
DL, D+15, G, C, E (optional)
Impact direction Universal angle (UA) type
Materials 10 common metal materials
Memory 300 data can be stored and re-readable
Statistics Calculated automatically
Re-calibration Allowed by user
Indicator Low battery
Communication interface Bluetooth (integrated with main unit, made-to-order) to bluetooth micro-printer
Auto power off Auto
Power supply 1.5V AA alkaline battery x 2
Working environment -10~+45ºC
Dimension (mm) 127x66x29
Net weight (g) 240
Standards Conforming to ASTM A956, DIN 50156, GB/T 17394-1998
*: DU-DL 2-in-1 probe is only available for HARTIP2000 D&DL.
