Durable Portable Color Difference Meter Multifunction LED , High Accuracy

Place of Origin made in China
Brand Name SADT
Certification ISO9001
Model Number SC30
Minimum Order Quantity 1
Packaging Details Standard package
Delivery Time within 5 days after receipt of your advanced payment
Payment Terms T/T in advance
Supply Ability 50pcs/week
Product Details
Accuracy Standard Deviation:within ΔE*ab: <0.08 ( When The White Calibration Plates Is Measured 30 Times, And Averaged) Illumination/Light System 45/0
Inspec Tion Angle 10° / 2° Inspec Tion Conditions D65 / C / F11 / D50
Storage 50 Groups Of Standard Samples, 30 Groups Of Values For Each Sample Display L*a*b*, L*C*H*, XYZ, ΔE*ab, Δ (L*a*b*), Δ (L*C*H*), ΔXYZ
Power Supply 4 X AA-size Battery Or AC Adapter Warranty 1 Year
High Light

color difference meter

,

portable color meter

Leave a Message
Product Description

Multifunction Precise color reader SC30, stable, durable and economy color difference meter

SC30 is developed according to international CIEI1931, 1976 and other releant standards and national standards, it is a new economic and practical general colorimeter equipped with the latest imported LED light source and sensor which make it stable, durable and economy. The menu-oriented interface that makes operation simple and easy to understand. SC30 is not only widely used on Quality department about the color difference but also used on the school teaching, scientific research and colr design.


Key Features:


Button& menu opertion, easy to understand, reasonable price.
Commonly used of two measurement modes: Lab &Lch, easy to switch measurement.
Automatically display the color difference between the sample and standard sample, also display the color trend degree.
Practical of the average measurement mode, uneven surface also can measure.
The color difference software can analysis, exchange the color difference graph and data.
The optional micro-printer can output the color difference data in time.

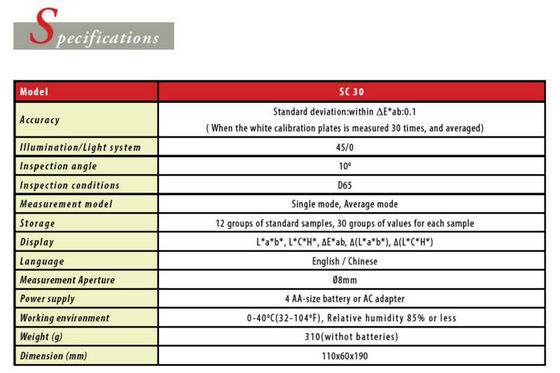

Specification:


Model

SC 30
Accuracy
Standard deviation: Within Δ E*ab: 0.1
( When the white calibration plates is measured 30 times, and averaged)
Illumination/Light system 45/0
Inspec tion angle 10o
Inspec tion conditions D65
Measurement model Single mode, Average mode
Storage 12 groups of standard samples, 30 groups of values for each sample
Display L*a*b*, L*C*H*, Δ E*ab, Δ (L*a*b*), Δ (L*C*H*)
Language English / Chinese
Measurement Aperture Ø 8mm
Power supply 4 AA-size battery or AC adapter
Working environment 0-40oC(32-104oF ), R e l at i ve humidit y 85% or less
Weight (g) 310(withot bat te r i e s )
Dimension (mm) 110x60x190

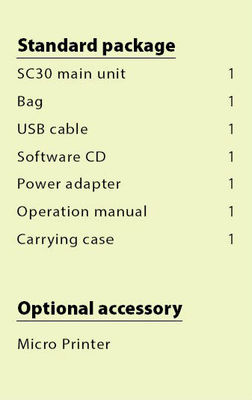

Standard package


SC30 main unit
Bag
USB cable
Software CD
Power adapter
Operation manual
Carrying case
Optional accessory
Micro Printer





_01_02

Durable Portable Color Difference Meter Multifunction LED , High Accuracy 2

_04_05_06_07_08
