White Light Source Colorimeter SC80 Stable With High Performance

Place of Origin Beijing
Brand Name SADT
Certification ISO9001
Model Number SC80
Minimum Order Quantity 1pc
Price USD600-1000/Pcs
Packaging Details Standard package
Delivery Time Within 3 days after receiving payment
Payment Terms T/T in advance, Western Union
Supply Ability 50pcs/week
Product Details
Accuracy 0.08 Aperture 8mm
Key Words Colorimeter Measuring Time About 0.5 Seconds
Rectification White Board Rectification/Black Board Rectification Storage 100 Samples And 100 Data Groups For Each Sample
Power Supply 4 Pcs Of AA Alkaline Batteries / Nickel Batteries / DC 5V Adaptor Warranty 1 Year
High Light

color testing equipment

,

portable color meter

Leave a Message
Product Description

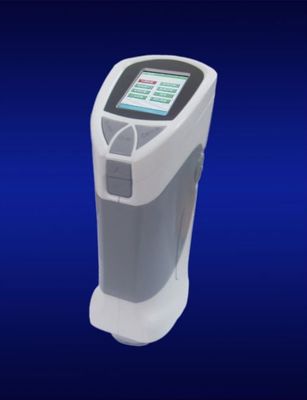

Portable Digital Colorimeter SC80




SC80B precise color reader( color meter) is mainly applied to plastic, painting, design, plating, costume,

printing and dyeing industries.. It can do the color analysis and color controlling.




1.KEY FEATURES

1)The 2.4” colorful screen and portable design make you feel comfortable.

2)Suitable for internal, external color evaluation and data control.

3)High precision measurement, stable performance.

4)PC software for data management.

5)National measurement accreditation.

6)USB data transmit

7)Yellow, whiteness measurement



2.SPECIFICATIONS

Model SC 80
Repeatablility Standard deviation within ΔE*ab<0.08



Optical system

8/d (8 degree lighting/diffusion)

Specular reflection light included (SCI)

Light source White light source , halogen lamp



Measuring condition

CIE 10 degree Standard observer

CIE D65 light source

Measuring angle L*: 1-100
Measuring time 0.5 second
Storage 100 samples and 100 data groups for each sample



Display

Color value: L*a*b*, L*c*h*, ΔE*ab, XYZ, with respect to RGB

color difference values Δ(L*a*b*), Δ(L*C*H*) Whiteness: Hunter Whiteness, Ganz Whiteness Yellowness:YI

Communication interface USB2.0, printer(optional)
Language English / Chinese
Aperture (mm) Ø8
Powersupply 4 pcs of AA alkaline batteries or nickel batteries special adaptor (DC,5V)
Weight (g) 550g
Dimension (mm) 77x86x210
