Black Smooth Surfaces Color Difference Meter SC20 with C light source for Quality Control

  • Black Smooth Surfaces Color Difference Meter SC20 with C light source for Quality Control
  • Black Smooth Surfaces Color Difference Meter SC20 with C light source for Quality Control
  • Black Smooth Surfaces Color Difference Meter SC20 with C light source for Quality Control
Place of Origin Beijing
Brand Name SADT
Certification CE ISO9001
Model Number SC20
Minimum Order Quantity 1pc
Price USD300-700/Pcs
Packaging Details Standard package
Delivery Time Within one week after receiving payment
Payment Terms T/T
Supply Ability 50pcs/week

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Accuracy <0.2 ΔE * Ab Test Time About 3 Seconds
Aperture (mm) Ø8 Sensor Silicon Photodiode Array
Weight (g) 204 Dimension (mm) 171x50x49
Application Measure Any Color Of Smooth Surfaces Warranty 1 Year
High Light

color testing equipment

,

portable color meter
Leave a Message
Product Description

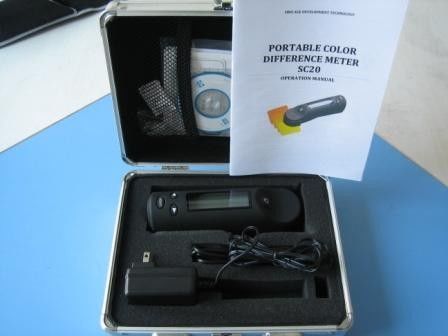

SC20 Color Difference Meter with USB Expansion Interface for Plastic, Printing Industries





SC20 portable color difference meter ( color meter) is widely applied to quality control of plastic and printing industries. It makes you capture color efficiently and accurately.





Key features:

  • Easy operation makes you use it easily.
  • Widely applied to quality control of plastic and printing industries.
  • Display directly color difference by E*ab, L*a*b, CIE_L*a*b, CIE_L*c*h.
  • Standard deviation within E*ab0.2 (test condition: choose average values by 12 pcs white tabula).
  • It can be connec ted with computer to do the inspec tion by sof tware with USB expansion interface.


Specifications:



Model SC 20
Accuracy <0.2 ΔE*ab
Display Δ E*ab, CIE_Lab, ΔLab, CIE_Lch
Test range L: 0~100, a: -128~127, b: -128~127
Test time About 3 seconds
Test interval 2 seconds
Aperture (mm) Ø8
Power off Automatically in 5 min
Light source C light source
Sensor Silicon photodiode array
Power Supply DC/5V (1.5A)/2 x 1.5V (AAA) battery
Working environment 0~40°C, < 85%RH
Weight (g) 204
Dimension (mm) 171x50x49
Application Measure any color of smooth surfaces




Color Difference Analysis



0~0.25ΔE Perfect
0.25~0.5ΔE Acceptable
0.5~1.0ΔE Acceptable in some areas
1.0~2.0ΔE Acceptable in some areas
2.0~4.0ΔE Acceptable in specific applications
4.0ΔE Not acceptable in most applications
